Rice Lake · Load Cells / Weigh Modules

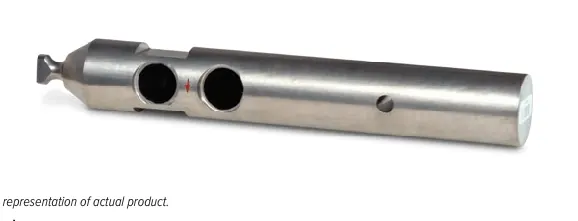

RL32011WB-L
Stainless Steel, Environmentally Sealed, NTEP Certified 1:5,000 Class III Multiple Cell, Potted, IP67
Specifications
- Full Scale Output
- 2.0 (± 0.1%) mV/V
- Output Resistance
- 350 (± 3) ohm
- Input Resistance
- 385 (± 10) ohm
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Environmentally sealed, IP67
- Safe Overload
- 150% full scale
- Safe Sideload
- 100% full scale
- Rated Excitation
- 5 to 10 VDC
- Combined Error
- 0.02% full scale
- Non-repeatability
- ± 0.01% full scale
- Insulation Resistance
- 5,000 megohm
- Cable Length
- 20 ft
- Cable Diameter
- 0.190 in Polyurethane jacket
- Cable Color Code
- Green +Excitation Black –Excitation White +Signal Red –Signal
- Warranty
- Two-year limited
