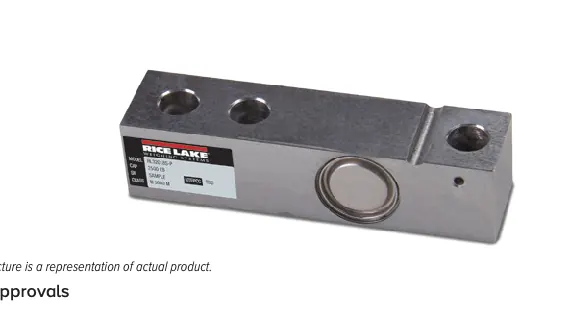

RL32018S-P

Specifications

Full Scale Output

3.0 mV/V ± 0.05% mV/V/ohm calibration

Output Resistance

350 (± 3) ohm

Input Resistance

400 (± 20) ohm

Material/Finish

Stainless steel

Temperature

Compensated: -14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type

Hermetically sealed, IP69K

Safe Overload

150% full scale

Safe Sideload

100% full scale

Rated Excitation

10 VDC (15 V maximum)

Combined Error

0.017% full scale

Insulation Resistance

> 5,000 megohm

Deflection at Capacity

0.2 to 0.4 mm

Cable Length

20 ft PTFE cable

Cable Color Code

Red +Excitation Black –Excitation Green +Signal White –Signal

Warranty

Two-year limited

Approvals

cFMus
