Rice Lake · Load Cells / Weigh Modules

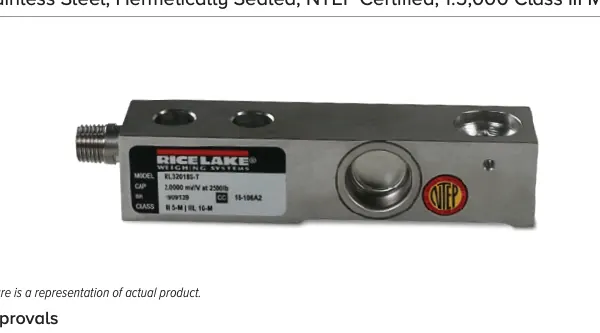

RL32018S-T
Stainless Steel, Hermetically Sealed, NTEP Certified, 1:5,000 Class III Multiple Cell, IP69K
Specifications
- Full Scale Output
- 2.0 mV/V ± 0.05% mV/V/ohm calibration
- Output Resistance
- 350 (± 3) ohm
- Input Resistance
- 400 (± 20) ohm
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Hermetically sealed, IP69K
- Safe Overload
- 150% full scale
- Rated Excitation
- 5 to 10 VDC
- Combined Error
- 0.017% full scale
- Insulation Resistance
- 5,000 megohm
- Cable Length
- 15 ft 30 ft
- Cable Color Code
- Green +Excitation Black –Excitation White +Signal Red –Signal Shield is attached to element
- Warranty
- Two-year limited
- Approvals
- NTEP 18-106 cFMus
