Rice Lake · Load Cells / Weigh Modules

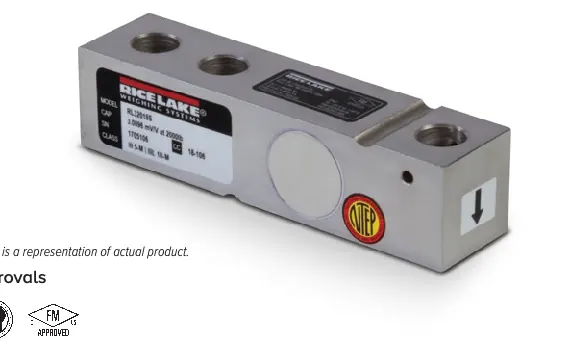

RL32018S
Stainless Steel, Environmentally Sealed, NTEP Certified 1:5,000 Class III Multiple Cell, IP66
Specifications
- Full Scale Output
- 3.0 mV/V ± 0.05% mV/V/ohm calibration
- Output Resistance
- 350 (± 3) ohm
- Input Resistance
- 400 (± 20) ohm
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating range 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Environmentally sealed, IP66
- Safe Overload
- 150% full scale
- Rated Excitation
- 10 VDC (15 V maximum)
- Combined Error
- 0.017% full scale
- Insulation Resistance
- > 5,000 megohm
- Deflection at Capacity
- 0.2 to 0.4 mm
- Cable Length
- 20 ft
- Cable Color Code
- Red +Excitation Black –Excitation Green +Signal White –Signal
- Warranty
- Two-year limited
- Approvals
- NTEP 18-106 cFMus
