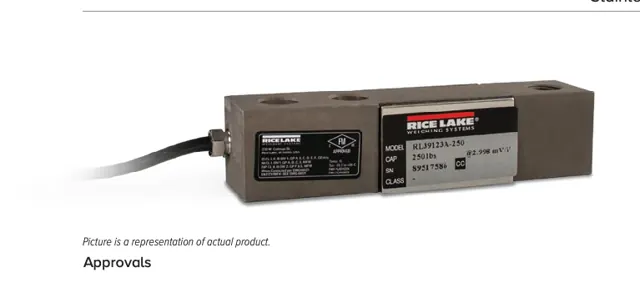

RL39123

Specifications

Full Scale Output

3.0 mV/V

Output Resistance

349 to 355 ohm

Input Resistance

343 to 357 ohm

Material/Finish

Stainless steel

Temperature

Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type

Environmentally sealed, IP67

Safe Overload

150% full scale

Safe Sideload

100% full scale

Rated Excitation

5 to 10 VDC (15 V maximum)

Nonlinearity

0.03% full scale

Hysteresis

0.02% full scale

Insulation Resistance

5,000 megohm

Deflection at Capacity

250 to 1,000 lb: 0.013 in 2,000 to 3,000 lb:0.015 in 4,000 to 5,000 lb: 0.025 in 10,000 lb: 0.32 in

Cable Length

20 ft 30 ft

Cable Diameter

0.200 in Polyurethane jacket

Cable Color Code

Red +Excitation Black –Excitation Green +Signal White –Signal
