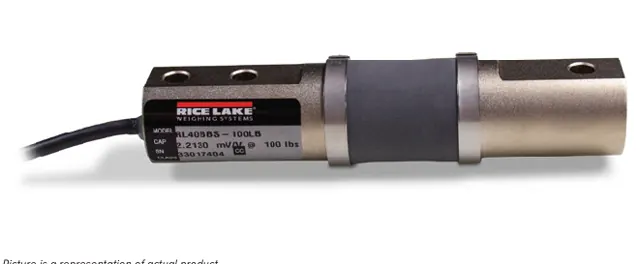

RL40BBS

Specifications

Full Scale Output

2.0 mV/V

Output Resistance

750 (± 10) ohm

Input Resistance

800 (±50) ohm

Material/Finish

High-alloy steel, nickel plated

Temperature

Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type

Environmentally sealed with neoprene sleeve, IP65

Safe Overload

150% full scale

Rated Excitation

5 to 10 VDC (15 V maximum)

Nonlinearity

0.03% full scale

Hysteresis

0.02% full scale

Insulation Resistance

5,000 megohm

Deflection at Capacity

50 lb: 0.015 in 100 lb: 0.005 in 200 to 250 lb: 0.030 in 500 lb: 0.025 in 1,000 lb: 0.040 in 2,500 lb: 0.120 in

Cable Length

10 ft

Cable Diameter

0.200 in Polyurethane jacket

Cable Color Code

Green +Excitation Black –Excitation White +Signal Red –Signal

Warranty

Two-year limited
