Rice Lake · Load Cells / Weigh Modules

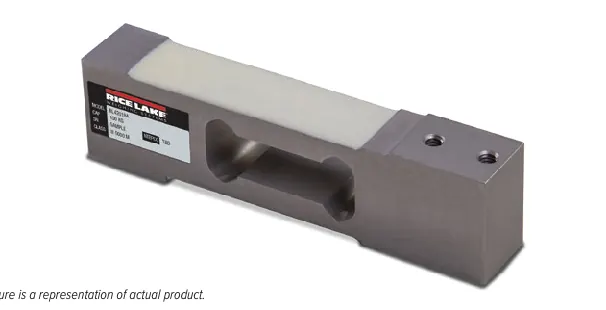

RL42018A
Aluminum, Environmentally Sealed, NTEP Certified 1:5,000 Class III Single Cell, IP66
Specifications
- Full Scale Output
- 2.0 mV/V ± 10%
- Output Resistance
- 350 (± 3) ohm
- Input Resistance
- 400 (± 20) ohm
- Material/Finish
- Aluminum
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Environmentally sealed, IP66
- Safe Overload
- 150% of full scale at center loading point
- Rated Excitation
- 10 VDC
- Combined Error
- 0.02% full scale
- Insulation Resistance
- > 5,000 megohm
- Deflection at Capacity
- 0.3 to 0.5 mm
- Cable Length
- 10 ft
- Cable Color Code
- Green +Excitation Black –Excitation Red +Signal White –Signal Blue +Sense Yellow –Sense
- Max Platform Size
- 15.75 × 15.75 in max
- Warranty
- Two-year limited
- Approvals
- NTEP 18-105 cFMus
