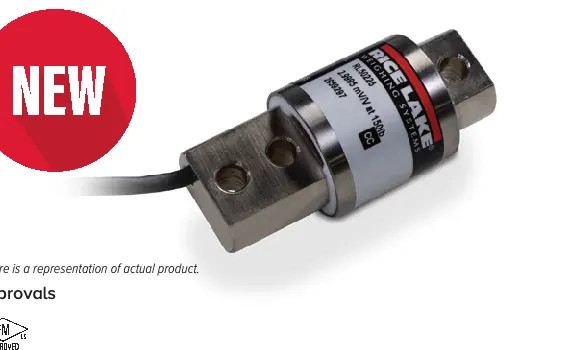

RL50225

Specifications

Full Scale Output

3.0 mV/V

Output Resistance

300 ohm

Input Resistance

360 to 450 ohm

Material/Finish

Alloy steel, nickel plated

Temperature

Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type

Environmentally sealed, IP65

Safe Overload

150% full scale

Rated Excitation

5 to 10 VDC (15 V maximum)

Nonlinearity

0.03% full scale

Hysteresis

0.02% full scale

Insulation Resistance

5,000 megohm

Deflection at Capacity

25 to 50 lb: 0.008 in 100 lb: 0.010 in 150 lb: 0.012 in 250 lb: 0.016 in 500 lb: 0.025 in

Cable Length

20 ft

Cable Diameter

0.200 in Polyurethane jacket

Cable Color Code

Red +Excitation Black –Excitation Green +Signal White –Signal

Warranty

Two-year limited
