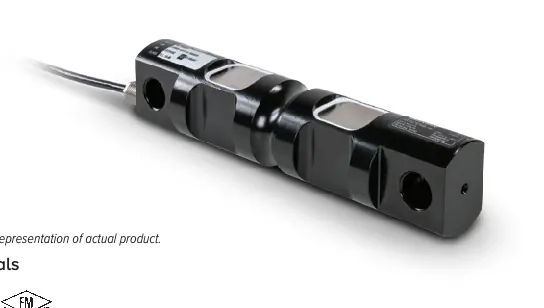

RL72020 MLC Coated

Specifications

Full Scale Output

3.0 mV/V

Output Resistance

700 (± 5) ohm

Input Resistance

5,000 to 10,000 lb: 700 (± 14) ohm 20,000 to 150,000 lb: 770 (± 10) ohm 200,000 to 250,000 lb: 700 (± 14) ohm

Material/Finish

Alloy steel, coated

Temperature

Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type

Environmentally sealed, IP67

Safe Overload

150% full scale

Safe Sideload

100% full scale

Rated Excitation

5 to 10 VDC (15 V maximum)

Combined Error

0.02% full scale

Insulation Resistance

5,000 megohm

Deflection at Capacity

5,000 lb: 0.02 in 10,000 lb: 0.025 in 20,000 lb: 0.042 in 30,000 to 50,000 lb: 0.02 in 60,000 lb: 0.025 in 100,000 lb: 0.02 in

Cable Length

30 ft

Cable Diameter

5,000 to 20,000 lb: 0.200 in 30,000 to 250,000 lb: 0.305 in Polyurethane jacket

Cable Color Code

Red +Excitation Black –Excitation Green +Signal White –Signal

Warranty

Two-year limited
