Rice Lake · Load Cells / Weigh Modules

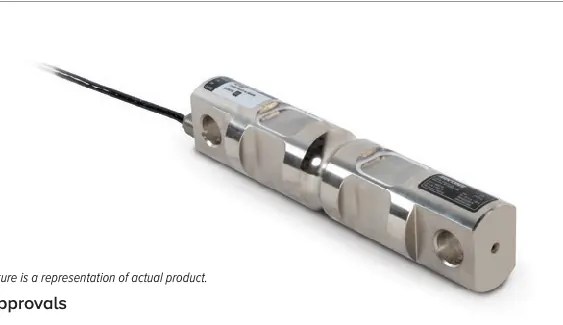

RL72020
Alloy Steel, Environmentally Sealed, NTEP Certified 1:5,000 Class III/1:10,000 Class IIIL Multiple Cell, IP67
Specifications
- Full Scale Output
- 3.0 mV/V
- Output Resistance
- 700 (± 5) ohm
- Input Resistance
- 5 to 10 k: 700 (± 14) ohm 20 to 150 k: 770 (± 10) ohm 200 to 250 k: 700 (± 14) ohm
- Material/Finish
- High-alloy steel, nickel plated
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Environmentally sealed, IP67
- Safe Overload
- 150% full scale
- Safe Sideload
- 100% full scale
- Rated Excitation
- 5 to 10 VDC (15 V maximum)
- Combined Error
- 0.02% full scale
- Insulation Resistance
- 5,000 megohm
- Deflection at Capacity
- 5,000 lb: 0.02 in 10,000 lb: 0.025 in 20,000 lb: 0.042 in 30,000 to 50,000 lb: 0.02 in 60,000 lb: 0.025 in 100,000 lb: 0.02 in
- Cable Length
- 30 ft
- Cable Color Code
- Red +Excitation Black –Excitation Green +Signal White –Signal
- Warranty
- Two-year limited
- Approvals
- NTEP 21-064 cFMus
