Rice Lake · Load Cells / Weigh Modules

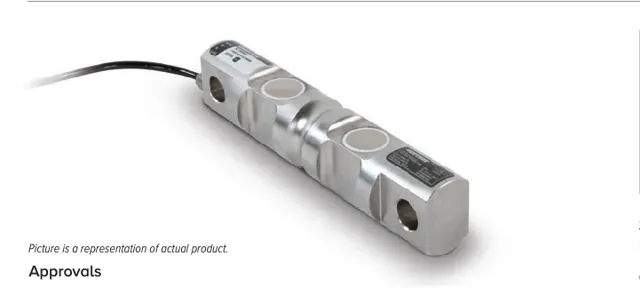

RL72020SS
Stainless Steel, Environmentally Sealed, NTEP Certified 1:5,000 Class III/1:10,000 Class IIIL Multiple Cell, IP67
Specifications
- Full Scale Output
- 3.0 mV/V
- Output Resistance
- 700 (± 5) ohm
- Input Resistance
- 700 (± 10) ohm
- Material/Finish
- Stainless steel
- Temperature
- Operating: 14 °F to 104 °F (-10 °C to 40 °C)
- Seal Type
- Environmentally sealed, IP67
- Safe Overload
- 150% full scale
- Safe Sideload
- 100% full scale
- Rated Excitation
- 5 to 10 VDC
- Combined Error
- 0.02% full scale
- Insulation Resistance
- 5,000 megohm
- Cable Length
- 30 ft polyurethane jacket
- Cable Color Code
- Red +Excitation Black –Excitation Green +Signal White –Signal
- Warranty
- Two-year limited
- Approvals
- NTEP 21-064 cFMus
