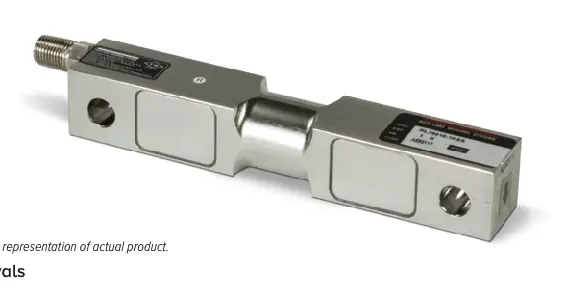

RL75016SS

Specifications

Full Scale Output

3.0 mV/V

Output Resistance

700 (± 5) ohm

Input Resistance

770 (± 10) ohm

Material/Finish

Stainless steel

Temperature

Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type

Environmentally sealed, IP67

Safe Overload

150% full scale

Safe Sideload

100% full scale

Rated Excitation

5 to 10 VDC (15 V maximum)

Nonlinearity

0.07% full scale

Hysteresis

0.02% full scale

Insulation Resistance

5,000 megohm

Deflection at Capacity

1,500 to 2,000 lb: 0.01 in 25,000 lb: 0.036 in

Cable Length

25 ft

Cable Diameter

0.200 in Polyurethane jacket

Cable Color Code

Red +Excitation Black –Excitation Green +Signal White –Signal
