Rice Lake · Load Cells / Weigh Modules

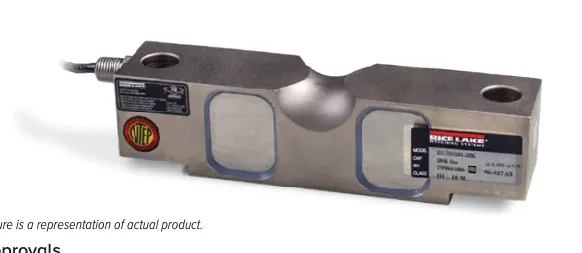

RL75058 I for Rice Lake Coil Scale
Alloy Steel, Environmentally Sealed, NTEP Certified 1:5,000 Class III Multiple Cell, IP67
Specifications
- Full Scale Output
- 3.0 mV/V
- Output Resistance
- 699 to 707 ohm
- Input Resistance
- 686 to 714 ohm
- Material/Finish
- High-alloy steel, nickel plated
- Temperature
- Compensated: 14 °F to 104 °F/-10 °C to 40 °C Operating: 0 °F to 150 °F/-18 °C to 65 °C
- Seal Type
- Environmentally sealed, IP67
- Safe Overload
- 150% full scale
- Safe Sideload
- 100% full scale
- Rated Excitation
- 5 to 10 VDC (15 V maximum)
- Combined Error
- 0.02% full scale
- Insulation Resistance
- 5,000 megohm
- Cable Length
- 35 ft
- Cable Diameter
- 20,000 lb: 0.200 in 40,000 to 75,000 lb: 0.305 in Polyurethane jacket
- Cable Color Code
- Red +Excitation Black –Excitation Green +Signal White –Signal
- Warranty
- Two-year limited
- Approvals
- NTEP 98-143 cFMus
