Rice Lake · Load Cells / Weigh Modules

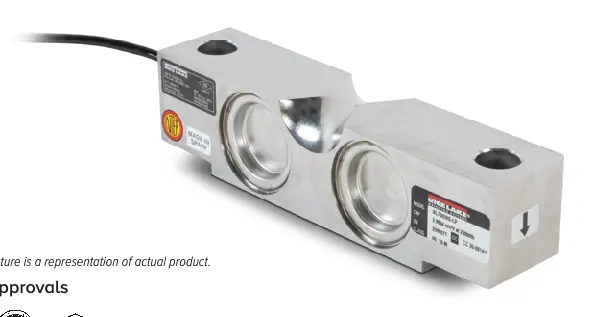

RL75058S-LP
Stainless Steel, Hermetically Sealed, NTEP Certified1:10,000 Class IIIL Multiple Cell, IP68/69K
Specifications
- Full Scale Output
- 3.0 mV/V
- Output Resistance
- 700 (± 7) ohm
- Input Resistance
- 700 (± 14) ohm
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Hermetically sealed, IP68/IP69K
- Safe Overload
- 150% full scale
- Safe Sideload
- 100% full scale
- Rated Excitation
- 5 to 10 VDC (15 V maximum)
- Combined Error
- 0.02% full scale
- Insulation Resistance
- 5,000 megohm
- Cable Length
- 35 ft 60 ft
- Cable Diameter
- 10,000 to 25,000 lb: 0.200 in 35,000 to 125,000 lb: 0.305 in Polyurethane jacket
- Cable Color Code
- Red +Excitation Black –Excitation Green +Signal White –Signal
- Warranty
- Two-year limited
- Approvals
- NTEP 20-081 cFMus
