Rice Lake · Load Cells / Weigh Modules

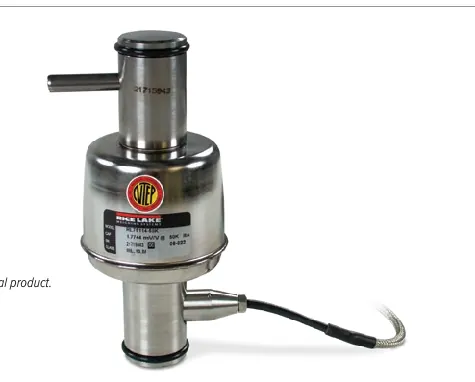

RL75114-50K
Stainless Steel, Welded Seal, NTEP Certified 1:10,000 Class III L, IP67
Specifications
- Full Scale Output
- 1.8 mV/V nominal
- Output Resistance
- 1,000 (± 10) ohm
- Input Resistance
- 1,000 ohm
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Welded-seal, IP67
- Safe Overload
- 150% full scale
- Rated Excitation
- 5 to 10 VDC
- Combined Error
- 0.025% full scale
- Non-repeatability
- 0.01% full scale
- Insulation Resistance
- 1,000 megohm
- Cable Length
- 30 ft
- Cable Diameter
- 0.200 in overbraid cable
- Cable Color Code
- Green +Excitation Black –Excitation White +Signal Red –Signal
- Warranty
- Two-year limited
- Approvals
- NTEP 06-022 cFMus
