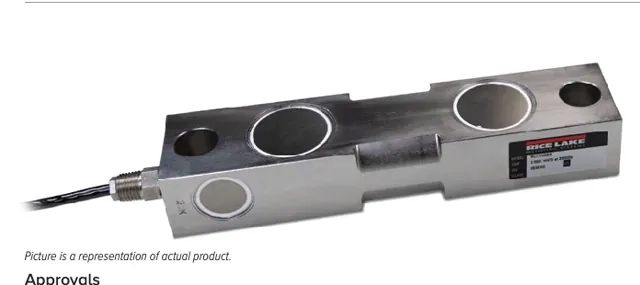

RL77032SS

Specifications

Full Scale Output

3.0 mV/V

Output Resistance

700 (± 5) ohm

Input Resistance

770 (± 10) ohm

Material/Finish

Stainless steel

Temperature

Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type

Environmentally sealed, IP67

Safe Overload

150% full scale

Safe Sideload

100% full scale

Rated Excitation

5 to 10 VDC

Nonlinearity

0.07% full scale

Hysteresis

0.02% full scale

Deflection at Capacity

1,000 to 2,500 lb: 0.01 in 5,000 lb: 0.015 in 10,000 to 20,000 lb: 0.022 in 25,000 lb: 0.036 in 50,000 lb: 0.052 in 75,000 lb: 0.07 in

Insulation Resistance

5,000 megohm

Cable Length

25 ft Polyurethane

Cable Color Code

Red +Excitation Black –Excitation Green +Signal White –Signal

Warranty

Two-year limited
