Rice Lake · Load Cells / Weigh Modules

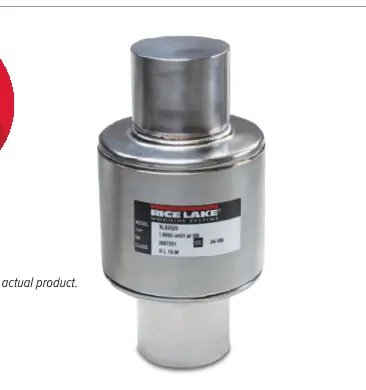

RL82025
Stainless Steel, Hermetically Sealed, NTEP Certified 1:10,000 Class IIIL Multiple Cell, IP69K
Specifications
- Full Scale Output
- 2.0 mV/V
- Output Resistance
- 705 (± 5) ohm
- Input Resistance
- 800 (± 5) ohm
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Hermetically sealer, IP69K
- Safe Overload
- 120% full scale
- Rated Excitation
- 5 to 10 VDC
- Combined Error
- 0.013% full scale
- Non-repeatability
- 0.01% full scale
- Insulation Resistance
- 5,000 megohm
- Deflection at Capacity
- 0.621 mm
- Cable Length
- 18 m overbraid cable
- Cable Color Code
- Green +Excitation Black –Excitation Red +Signal White –Signal Blue +Sense Yellow -Sense
- Warranty
- Two-year limited
- Approvals
- NTEP 24-109
