Rice Lake · Load Cells / Weigh Modules

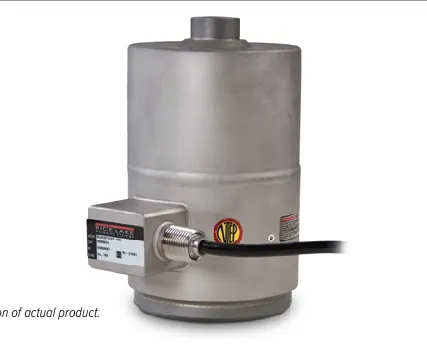

RL8C2P1SST
Stainless Steel, Hermetically Sealed, NTEP Certified 1:10,000 Class IIIL Multiple Cell, IP68
Specifications
- Full Scale Output
- 2.0 mV/V
- Output Resistance
- 350 (±3.5) ohm
- Input Resistance
- 350 (±3.5) ohm
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Hermetically sealed, IP68
- Safe Overload
- 150% full scale
- Rated Excitation
- 10 VDC (15 V maximum)
- Combined Error
- 0.03% full scale
- Non-repeatability
- 0.01% full scale
- Insulation Resistance
- >1,000 megohm
- Deflection at Capacity
- 50,000 lb: 0.004 in 100,000 lb: 0.006 in 200,000 lb: 0.009 in
- Cable Length
- 35 ft
- Cable Color Code
- Green +Excitation Black –Excitation White +Signal Red –Signal Orange Shield
- Warranty
- Two-year limited
- Approvals
- NTEP 92-218 cFMus
