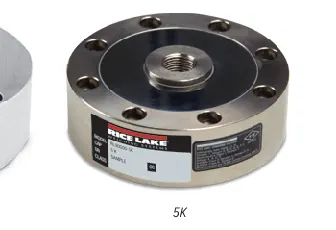

RL90000

Specifications

Full Scale Output

4.0 mV/V

Output Resistance

5,000 to 50,000 lb: 350 (± 3) ohm 100,000 lb: 700 (± 5) ohm

Input Resistance

5,000 to 50,000 lb: 385 (± 5) ohm 100,000 lb: 770 (± 70) ohm

Material/Finish

High-alloy steel, nickel plated

Temperature

Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type

Environmentally sealed, IP67

Safe Overload

150% full scale

Safe Sideload

100% full scale

Rated Excitation

15 VDC (15 V maximum)

Nonlinearity

0.05% full scale

Hysteresis

0.02% full scale

Insulation Resistance

2,000 megohm

Cable Length

50 ft

Cable Diameter

5,000 to 25,000 lb: 0.200 in 50,000 to 100,000 lb: 0.305 in Polyurethane jacket

Cable Color Code

Red +Excitation Black –Excitation Green +Signal White –Signal

Warranty

Two-year limited
