Rice Lake · Load Cells / Weigh Modules

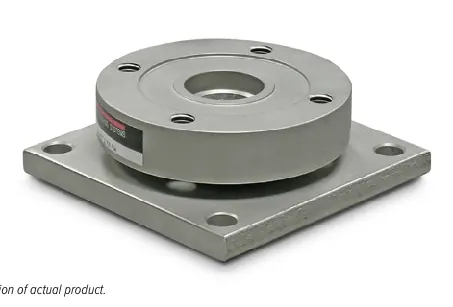

RL9000TWM-HT
Stainless Steel, High Temperature, Weigh Module
Standard features
- Capacities: 1,000 to 50,000 lb
- Stainless steel construction
- Low-profile design
- Self-centering
- Self-checking assembly
- Offers 100% side load, 100% uplift, 150% safe load and 300% ultimate overload protection
- Weighs accurately with up to 3° non-parallel load
Specifications
- Full Scale Output
- 3.0 (± 0.1%) mV/V
- Bridge Resistance
- 700 ohm
- Material/Finish
- Stainless steel
- Temperature
- Operating: 0 °F to 400 °F (-17 °C to 204 °C)
- Seal Type
- Welded seal, IP67
- Safe Overload
- 150% full scale
- Nonlinearity
- 0.01% full scale
- Insulation Resistance
- 5,000 megohm
- Non-repeatability
- 0.02% full scale
- Deflection at Capacity
- 1,000 to 15,000 lb: 0.002 in 20,000 to 50,000 lb: 0.004 in
- Cable Length
- 25 ft PTFE jacket
- Cable Color Code
- Green +Excitation Black –Excitation White +Signal Red –Signal
- Warranty
- Two-year limited
