Rice Lake · Load Cells / Weigh Modules

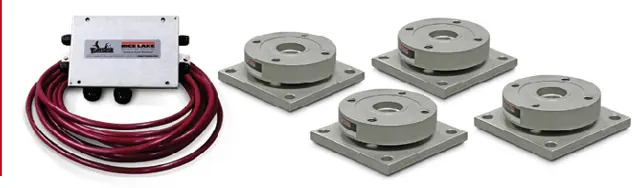

RL9000TWM Series
Stainless Steel, Weigh Module Kit
Standard features
- Capacities (per module): 1,000 to 450,000 lb
- Stainless steel construction
- Mild steel base plates (stainless steel available on some capacities)
- Low-profile design
- Self-centering
- Self-checking assembly
- Offers 100% sideload, 100% uplift and 150% static safe load and 300% ultimate static overload protection
- Weighs accurately with up to 3° non-parallel load
Specifications
- Full Scale Output
- 3.0 (± 0.1%) mV/V
- Bridge Resistance
- 350 ohm
- Material/Finish
- Stainless steel
- Temperature
- Operating: 0 °F to 150 °F (-17 °C to 65 °C)
- Seal Type
- Welded-seal, IP67
- Safe Overload
- 150% full scale
- Rated Excitation
- 5 to 10 VDC
- Nonlinearity
- 1,000 to 100,000 lb: 0.05% FS 150,000 to 450,000 lb: 0.1% FS
- Insulation Resistance
- 5,000 megohm
- Non-repeatability
- 1,000 to 100,000 lb: 0.02% full scale 150,000 to 450,000 lb: 0.03% full scale
- Cable Length
- 25 ft
- Deflection at Capacity
- 1.000 to 15,000 lb: 0.002 in 20,000 to 50,000 lb: 0.004 in 60,000 to 200,000 lb: 0.007 in 250,000 to 450,000 lb: 0.009 in
- Cable Color Code
- Green +Excitation Black –Excitation White +Signal Red –Signal
- Warranty
- Two-year limited
