Rice Lake · Load Cells / Weigh Modules

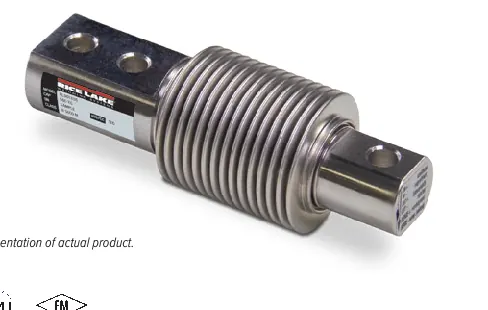

RL9018SS
Stainless Steel, Hermetically Sealed, NTEP Certified 1:4,000S/1:5,000M, OIML C3, IP68/IP69K
Specifications
- Full Scale Output
- 2.0 mV/V ± 10%
- Output Resistance
- 350 (± 3) ohm
- Input Resistance
- 400 (± 20) ohm
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Hermetically sealed, IP68/IP69K
- Safe Overload
- 150% full scale
- Rated Excitation
- 5 to 10 VDC (15 V maximum)
- Combined Error
- 0.017% full scale
- Insulation Resistance
- > 5,000 megohm
- Deflection at Capacity
- 0.2 to 0.4 mm
- Cable Length
- 3 m PVC cable
- Cable Color Code
- Blue +Excitation Black –Excitation White +Signal Red –Signal Green +Sense Yellow -Sense
- Warranty
- Two-year limited
- Approvals
- NTEP 18-107 OIML R60/2017-A-NL1-19.27 cFMus FM18US0307X
