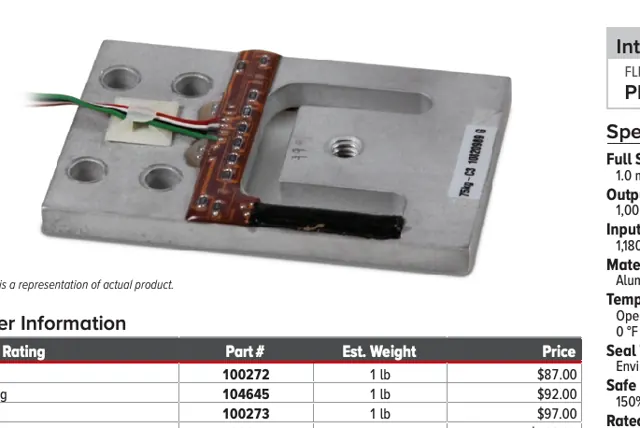

RLBLP

Specifications

Full Scale Output

1.0 mV/V

Output Resistance

1,000 (± 10) ohm

Input Resistance

1,180 (± 50) ohm

Material/Finish

Aluminum

Temperature

Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type

Environmentally sealed, IP65

Safe Overload

150% full scale

Rated Excitation

5 to 15 VDC

Combined Error

0.05% full scale

Insulation Resistance

5,000 megohm

Cable Length

15 kg: 1.0 m 37.5 kg, 75 kg, 150 kg: 1.5 m

Cable Color Code

Green +Excitation Black –Excitation White +Signal Red –Signal

Warranty

Two-year limited
