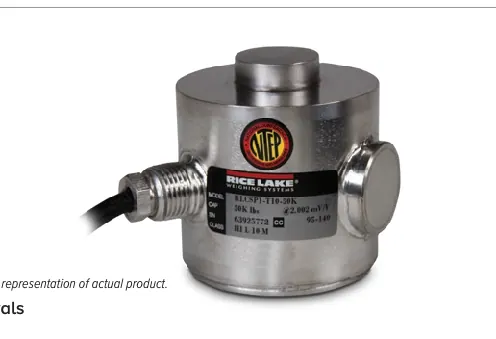

RLCSP1

Specifications

Full Scale Output

2.0 mV/V

Output Resistance

475.2 to 484.8 ohm

Input Resistance

445.5 to 454.5 ohm

Material/Finish

Stainless steel

Temperature

Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type

Welded-seal, IP67

Safe Overload

150% full scale

Rated Excitation

5 to 10 VDC (15 V maximum)

Combined Error

0.03% full scale

Non-repeatability

0.01% full scale

Insulation Resistance

1,000 megohm

Deflection at Capacity

25,000 to 50,000 lb: 0.003 in 100,000 to 125,000 lb: 0.006 in

Cable Length

35 ft 80 ft

Cable Diameter

0.305 in Polyurethane jacket

Cable Color Code

Green +Excitation Black –Excitation White +Signal Red –Signal Orange Shield

Warranty

Two-year limited
