Rice Lake · Load Cells / Weigh Modules

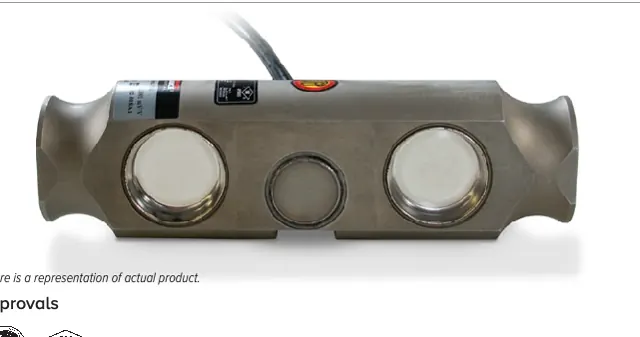

RLDB50000S
Stainless Steel, Welded Seal, NTEP Certified 1:10,000 IIIL Multiple Cell, IP67
Specifications
- Full Scale Output
- 2.0 (± 0.1%) mV/V
- Output Resistance
- 699 to 707 ohm
- Input Resistance
- 686 to 714 ohm
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F(-18 °C to 65 °C)
- Seal Type
- Welded-seal, IP67
- Safe Sideload
- A ENGINEERING RELEASE 100% full scale
- Rated Excitation
- 5 to 10 VDC (15 V maximum)
- Combined Error
- 0.03% full scale
- Non-repeatability
- 0.01% full scale
- Insulation Resistance
- 5,000 megohm
- Deflection at Capacity
- 0.01 in
- Cable Length
- 35 ft
- Cable Diameter
- 0.305 in Polyurethane jacket
- Cable Color Code
- Red +Excitation Black –Excitation White +Signal Green –Signal
