Rice Lake · Load Cells / Weigh Modules

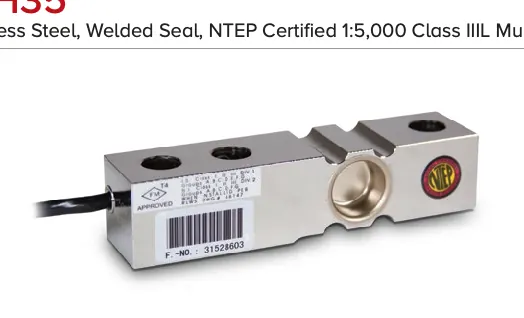

RLH35
Stainless Steel, Welded Seal, NTEP Certified 1:5,000 Class IIIL Multiple Cell, IP67
Specifications
- Full Scale Output
- 3.0 mV/V
- Output Resistance
- 350 ohm, nominal
- Input Resistance
- 385 ohm, nominal
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Welded-seal, IP67
- Safe Overload
- 150% full scale
- Rated Excitation
- 5 to 10 VDC (15 V maximum)
- Combined Error
- 0.02% full scale
- Insulation Resistance
- 5,000 megohm
- Deflection at Capacity
- 0.02 in
- Cable Length
- 20 ft
- Cable Diameter
- 0.190 in Polyurethane jacket
- Cable Color Code
- Green +Excitation Black –Excitation White +Signal Red –Signal Yellow Shield
- Warranty
- Two-year limited
- Approvals
- NTEP 06-023 FM
