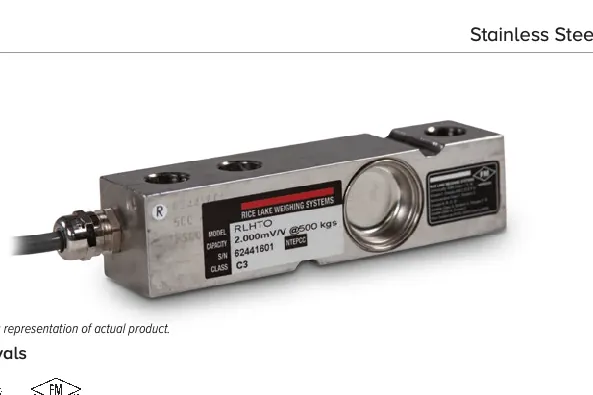

RLHTO

Specifications

Full Scale Output

2.0 mV/V

Output Resistance

350 (± 3) ohm

Input Resistance

380 (± 10) ohm

Material/Finish

Stainless steel

Temperature

Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type

Hermetically sealed, IP66/68

Safe Overload

150% full scale

Safe Sideload

100% full scale

Rated Excitation

5 to 10 VDC (15 V maximum)

Combined Error

0.02% applied load

Insulation Resistance

2,000 megohm

Deflection at Capacity

0.4 mm

Cable Length

5 m

Cable Diameter

5 mm Polyurethane jacket

Cable Color Code

Blue +Excitation Black –Excitation White +Signal Red – Signal Green +Sense Grey –Sense

Warranty

Two-year limited
