Rice Lake · Load Cells / Weigh Modules

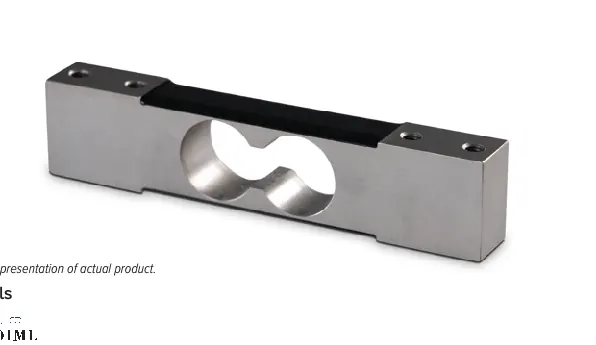

RLPC3SS
Stainless Steel, Environmentally Sealed, NTEP Certified 1:3,000 Class III Single Cell, IP67
Specifications
- Full Scale Output
- 2 mV/V
- Output Resistance
- 350 (± 10) ohm
- Input Resistance
- 385 (± 15) ohm
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Environmentally sealed, IP67
- Safe Overload
- 150% full scale
- Rated Excitation
- 5 to 10 VDC
- Combined Error
- 0.02% full scale
- Insulation Resistance
- 5,000 megohm
- Cable Length
- 10 ft
- Cable Diameter
- 0.140 in Polyurethane jacket
- Cable Color Code
- Green +Excitation Black -Excitation White +Signal Red -Signal Yellow Shield
- Max Platform Size
- 7 to 30 kg: 350 × 350 mm 60 to 150 kg: 450 × 450 mm
- Warranty
- One-year limited
- Approvals
- NTEP 21-017 OIML R60/2017-A-NL1-21.17
