Rice Lake · Load Cells / Weigh Modules

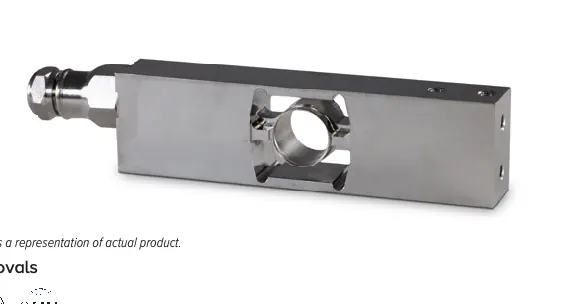

RLPC4SS-HE
Stainless Steel, Hermetically Sealed, NTEP Certified 1:5,000 Class III Single Cell, IP69K
Specifications
- Full Scale Output
- 2 mV/V
- Output Resistance
- 960 (± 50) ohm
- Input Resistance
- 1100 (± 50) ohm
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Hermetically sealed, IP69K
- Safe Overload
- 150% full scale
- Rated Excitation
- 5 to 10 VDC
- Combined Error
- 0.02% full scale
- Insulation Resistance
- > 5,000 megohm
- Cable Length
- 10 ft
- Cable Color Code
- Green +Excitation Black -Excitation White +Signal Red -Signal Blue +Sense Brown -Sense Yellow Shield
- Max Platform Size
- 500 × 400 mm
- Warranty
- One-year limited
- Approvals
- NTEP 21-016 OIML R60/2017-A-NL1-21.18
