Rice Lake · Load Cells / Weigh Modules

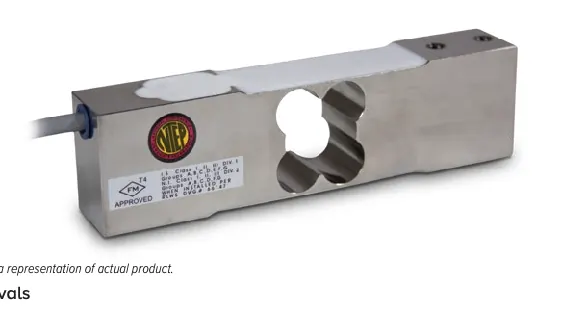

RLPWM15
Stainless Steel, Environmentally Sealed, NTEP Certified 1:5,000 Class III Single Cell, IP67
Specifications
- Full Scale Output
- 2.0 mV/V
- Bridge Resistance
- 350 ohm, nominal
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Environmentally sealed, IP67
- Safe Overload
- 150% full scale
- Rated Excitation
- 5 to 10 VDC (15 V maximum)
- Combined Error
- 0.02% full scale
- Insulation Resistance
- 1,000 megohm
- Cable Length
- 10 ft
- Cable Diameter
- 0.190 in PVC jacket
- Cable Color Code
- Blue +Excitation Black –Excitation White +Signal Red –Signal Green +Sense Grey –Sense
- Max Platform Size
- 15 × 15 in
- Warranty
- Two-year limited
- Approvals
- NTEP 11-038 FM
