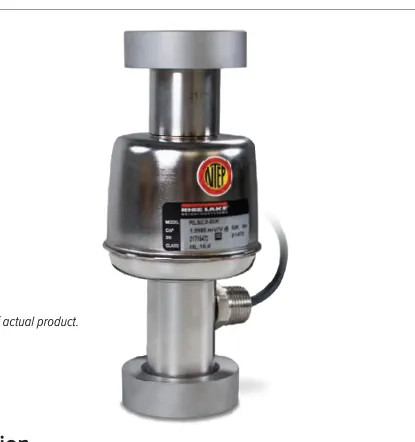

RLSCA-50K

Specifications

Full Scale Output

2 mV/V nominal

Output Resistance

1,050 (± 10) ohm

Input Resistance

1,100 to 1,500 ohm

Material/Finish

Stainless steel

Temperature

Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type

Welded-seal, IP67

Safe Overload

150% full scale

Rated Excitation

5 to 10 VDC (15 V maximum)

Combined Error

0.025% full scale

Non-repeatability

0.01% full scale

Insulation Resistance

1,000 megohm

Cable Length

30 ft

Cable Diameter

0.200 in Polyurethane jacket

Cable Color Code

Green +Excitation Black –Excitation Red +Signal White –Signal

Warranty

Two-year limited

Approvals

NTEP 01-073 cFMus
