Rice Lake · Load Cells / Weigh Modules

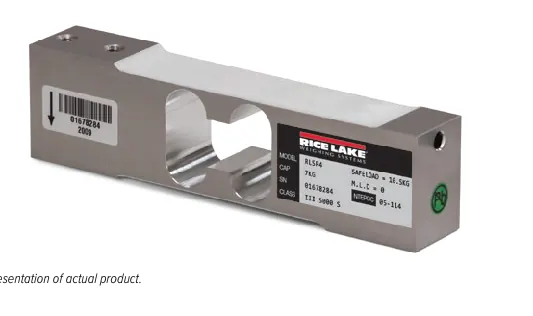

RLSP4
Aluminum, Environmentally Sealed, NTEP Certified 1:5,000 Class III Single Cell, IP66
Specifications
- Full Scale Output
- 2.0 mV/V
- Output Resistance
- 350 (± 3) ohm
- Input Resistance
- 350 ohm
- Material/Finish
- Anodized aluminum
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Environmentally sealed, IP66
- Safe Overload
- 150% full scale
- Rated Excitation
- 5 to 10 VDC (15 V maximum)
- Combined Error
- 0.02% full scale
- Insulation Resistance
- 5,000 megohm
- Deflection at Capacity
- 0.4 mm
- Cable Length
- 10 ft
- Cable Diameter
- 0.19 in PVC jacket
- Cable Color Code
- Green +Excitation Black –Excitation Red +Signal White –Signal Blue +Sense Brown –Sense Yellow Shield
- Max Platform Size
- 5 to 10 kg: 12 × 12 in 15 to 30 kg: 18 × 18 in 50 to 100 kg: 24 × 24 in
- Warranty
- Two-year limited
