Rice Lake · Livestock Scales

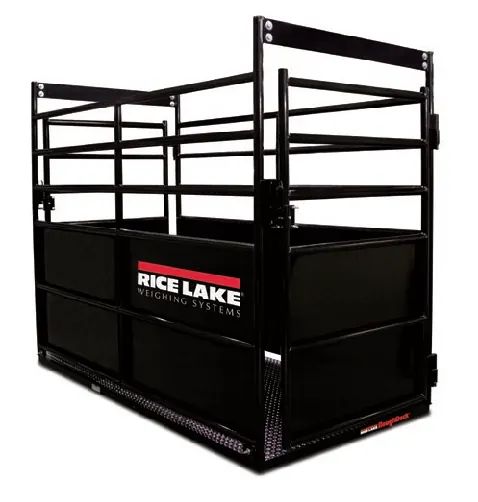

RoughDeck® SLV
Single Animal Livestock Scale
Standard features
- Mild steel construction
- Diamond safety thread plate deck
- Rigid-type structural steel channel frame
- NEMA Type 4X stainless steel side-access junction box without quick connector
- Signal trim summing board
- Four adjustable stainless steel SUREFOOT™ support feet
- SURVIVOR® EL147HE hostile environment load cell cable
- Four alloy steel load cells
Specifications
- Full Scale Capacity
- 4,000 lb, 1 lb increments
- End Load Capacity
- 125% full scale
- Cable Length
- 20 ft (6 m)
- Warranty
- Two-year limited (scale only)
- Approvals
- NTEP 92-001 Class III 4,000 d Capacity not to exceed 4,000 lb x 1 lb and platform size not to exceed 32 sq ft
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 103617 | 4,000 lb, 20 ft without Quick Connect, modified to fit gate and rack (scale platform only) 8 |
| 78452 | 4,000 lb, 20 ft without Quick Connect (gate and rack not included) (scale platform only) 8 |
| 103619 | 4,000 lb, 20 ft without Quick Connect, modified to fit gate and rack (scale platform only) 8 |
| 78453 | 4,000 lb, 20 ft without Quick Connect (gate and rack not included) (scale platform only) 8 |
| 231387 | 8 |
| 231388 | 8 |
| 231389 | 8 |
| 231390 | 8 |
Options & accessories (3)
| 226036 | |
| 18777 | Floor anchor plates, mild steel (set of 2) |
| 18778 | Floor anchor plates, stainless steel (set of 2) |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 614. Specifications are subject to change without notice.
