Rice Lake · Health Scales

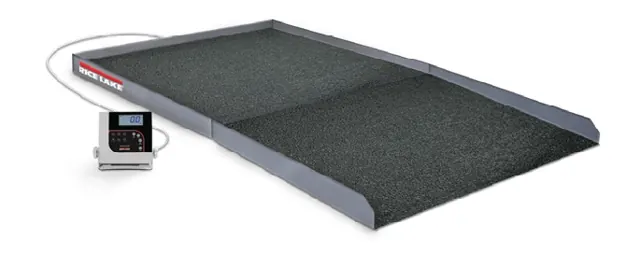

SB-1150 Summit™
Bariatric Wheelchair Scale
Standard features
- Large LCD display
- Antimicrobial keypad
- Heavy-duty mild steel construction
- Single ramp
- Metal, nonslip platform
- Motiontrap™ movement compensation technology
- Unit of measure toggle or locking
- EMR capable
- Serial and USB data communication ports
- Wireless personal area network (WPAN) option available
- Tare function
- Hold function
- Body mass index (BMI) function
- Factory calibrated
Specifications
- Capacity
- 1,000 × 0.2 lb (450 × 0.1 kg)
- Platform Dimensions
- (L × W × H) 36.0 × 36.0 × 4.0 in
- Ramp Dimensions
- (L × W × H) 36.0 × 28.5 × 4.0 in
- Power
- 9 VDC, provided by six AA alkaline batteries (included) or AC adapter (optional)
- Battery Type
- Six AA alkaline (included)
- Battery Use
- 25 hours continuous use with batteries Automatic power-off can be configured
- Cable Length
- 10 ft (3.1 m) cable between scale base and indicator
- Display
- Five-digit LCD display, 0.75 in (1.9 cm) digit height
- Temperature
- Operating: 50 °F to 104 °F (10 °C to 40 °C)
- Warranty
- Two-year limited
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 150706 | SB-1150 1,000 × 0.2 lb (450 × 0.1 kg) with USB |
| 205977 | SB-1150WPAN 1,000 × 0.2 lb (450 × 0.1 kg) WPAN |
Options & accessories (1)
| 133077 | † 9VDC adapter, 100-240V, NEMA 1-15 Plug, cULus power supply |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 487. Specifications are subject to change without notice.
