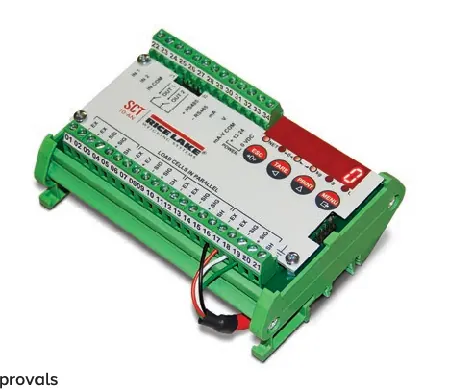

SCT-10
Signal Conditioning Transmitter
Standard features
- Converts digital weight to analog output
- Sums four input channels in parallel
- Theoretical calibration, real-weigh calibration, linearity calibration
- Push-button or preset tare
- Full-scale analog output with zero setting and PLC correction of analog signal
- Displays weight, configuration, calibration and error conditions
- DIN-rail mounting, suitable for back panel
- Two digital inputs, two digital outputs
- Supports ASCII or Modbus RTU protocols
Specifications
- Power
- Input: 12 to 24 VDC
- Power Consumption
- 5 W
- Excitation Voltage
- 5 VDC, 120 mA, 8 × 350 ohm load cells
- Analog Signal Input Range
- ± 19.5 mV
- Analog Signal Sensitivity
- 0.3 µV/graduation minimum 1.0 µV/graduation recommended
- A/D Sample Rate
- 80 Hz
- Resolution
- Internal: 16,000,000 counts Display: 999,999
- System Linearity
- ± 0.01% full scale
- Digital I/O
- 2 inputs 5-24 VDC, 2 outputs 24 VDC/60 mA N.O. or N.C. (solid state) Communication Ports RS-485 or RS-232 simplex supports up to 115,200 bps
- Analog Output
- Opto isolated, 16 bit 0-20 mA, 4-20 mA (max 300 ohm) 0-10 VDC, 0-5 VDC, -10 to 10 VDC, 5 to 5 VDC, (min 10 k ohm)
- Annunciators
- Net, center of zero, stability, kg, g, lb
- Display
- 0.3 in (8 mm), six-digit, seven- segment LED
- Keys/Buttons
- 4-key membrane panel, tactile feel Zero, Tare, Print, Menu, Escape, Left and Up Navigation, Enter
- Dimensions
- (L × W × H) DIN Rail Mount: 4.84 × 3.62 × 1.96 in (123 × 92 × 50 mm) Enclosure: 6.69 × 5.51 × 3.74 in (170 × 140 × 95 mm)
- Temperature & Humidity
- Operating Temperature: -4 °F to 140 °F (-20 °C to 60 °C) Humidity: 85% non-condensing
- Rating/Material
- DIN rail mount: NEMA Type 1 Enclosure: NEMA Type 4/IP67, plastic Clear cover: six PG9 cord grips
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 129393 | SCT-10 converter with Analog Output 1 lb |
| 129394 | SCT-10 converter with Analog Output in enclosure 1 lb |
Options & accessories (3)
| 88792 | 12 VDC 1.2 A DIN rail mount power supply 1 lb |
| 119244 | 24 VDC 1.3 A DIN rail mount power supply 1 lb |
| 131129 | Installation manual 1 lb |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 544. Specifications are subject to change without notice.
