Rice Lake · Indicators / Controllers

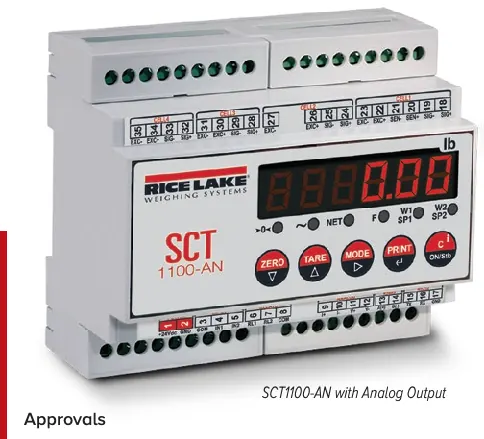

SCT-1100
Signal Conditioning Transmitter
Standard features
- Up to four independent scales or four load cell inputs
- Quick menu for real and theoretical calibration
- Red LED display
- DIN rail mountable
- Configurable calibration and setup parameters from keyboard
- Calibration using linearization points
- Reading of the net, gross and tare weights, clearing, semi-automatic and preset tare, scale switch, setting of outputs application thresholds
- Diagnostic information via serial port, message display, printing, setting of APW in counting mode, digital input for key press
- Modbus RTU or ASCII protocol
- Easy configuration with Rice Lake Tools software
Specifications
- Power
- 12/24 VDC
- Power Consumption
- 70 mA min to 100 mA max
- Excitation Voltage
- 5VDC, 120 mA, 8 × 350 ohm load cells
- Analog Signal Input Range
- ± 39 mV
- Analog Signal Sensitivity
- 0.3 µV/graduation minimum
- A/D Sample Rate
- Four channel A/D 24-bit sigma-delta conversion, up to 200 conv./sec. auto select
- Resolution
- Internal: 1,500,000 counts Display: 800,000
- Digital I/O
- Two inputs: 12/24 VDC Two outputs: 150 mA 48 VAC/150 mA 60 VDC
- Serial Ports
- Modbus RTU or ASCII selectable/bidirectional (both ports) (1) RS-485 for connection to a PC or weight repeater (1) RS-232 for connection to a PC or printer
- Analog Output (if equipped)
- Opto isolated, 16-bit 0 to 20mA, 4 to 20mA (Maximum 350 ohm) 0 to 5VDC, 0 to 10VDC (Minimum 10,000 ohm)
- Annunciators
- Net, center of zero, stability
- Display
- Six-digit (10 mm), red LED
- Keys/Buttons
- Five key, membrane panel, tactile feel Zero (Down), Tare (Up), Mode (Right), Print (Enter), C (On/Off)
- Dimensions
- (L × W × H) 4.17 × 3.54 × 2.28 in (106 × 90 × 58 mm)
- Temperature
- 5 °F to 104 °F (-15 °C to 40 °C)
- Humidity
- 85% non-condensing
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 202101 | Indicator, SCT-1100-AN four load cell input with Analog Output 1 lb |
| 197011 | 1 lb |
Options & accessories (3)
| 188483 | 1 lb |
| 88792 | 12 VDC 1.2 A DIN rail mount power supply 1 lb |
| 119244 | 24 VDC 1.3 A DIN rail mount power supply 1 lb |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 538. Specifications are subject to change without notice.
