Rice Lake · Indicators / Controllers

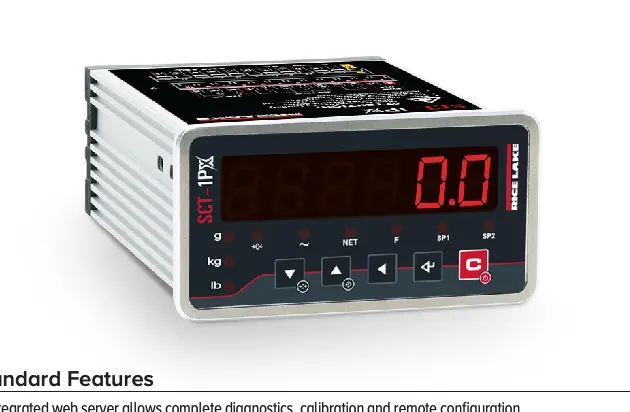

SCT-1PX
Transmitter with Integrated Fieldbus and Web Server
Standard features
- Integrated web server allows complete diagnostics, calibration and remote configuration
- Real-time warning of any faults or disconnections of the load cell
- Configuration and calibration through Rice Lake Tools, XSpeed software or display navigation
- Power supply circuit with protections against overloads, polarity reversal and short circuits, specific for industrial environments
- Micro-USB communication and configuration port accessible from display for quick programming, diagnostics and data backup
- All scale data and adjustments are available through integrated fieldbus with up to 120 updates per second
- Removable terminal blocks to simplify wiring in the electrical panel
- Modbus RTU protocol integrated, up to 110 updates per second
Specifications
- Power
- 12 to 24 VDC
- Power Consumption
- 5 W
- Excitation Voltage
- 5 VDC, 230 mA up to 16 × 350 ohm load cells
- Analog Signal Input Range
- ±39 mV
- Analog Signal Sensitivity
- 0.3 µV/graduation minimum
- A/D Sample Rate
- 24-bit A/D Single channel up to 4,800 Hz
- Resolution
- Internal: 4,000,000 counts Display: up to 800,000 Up to 8 linearization points
- Digital I/O
- Two inputs: 12/24 VDC Two outputs*: 500 mA, up to 48 VAC or 60 VDC *(up to six with option for analog version only)
- Serial Ports
- One micro-USB port (device) for PC configuration One RS-485 EtherNet /IP™ or PROFINET IO or Modbus TCP (Fieldbus version)
- Analog Output (if equipped)
- Opt. isolated, 16-bit 0 to 20 mA, 4 to 20 mA (maximum 350 ohm) 0 to 5 VDC, 0 to 10 VDC (minimum 10,000 ohm)
- Annunciators
- Nine LEDs
- Display
- Six-digit 0.56 in (14.2 mm), red LED
- Keys/Buttons
- Five tactile keys Zeroing, Tare, function mode, manual data printing/ sending, On/Stand-by
- Dimensions
- (L × W × H) 3.93 × 2.08 × 5.35 in (100 × 53 × 136 mm)
- Temperature
- Certified: 14 °F to 104 °F (-10 °C to 40 °C) Operating: -4 °F to 140 °F (-20 °C to 60 °C)
- Humidity
- 85% RH, non-condensing
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 229189 | SCT1PX-AN |
| 229190 | SCT1PX-PRONET |
| 229192 | SCT1PX-MODTCP |
Options & accessories (2)
| 88792 | 12 VDC 1.2 A DIN rail mount power supply 1 lb |
| 119244 | 24 VDC 1.3 A DIN rail mount power supply 1 lb |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 541. Specifications are subject to change without notice.
