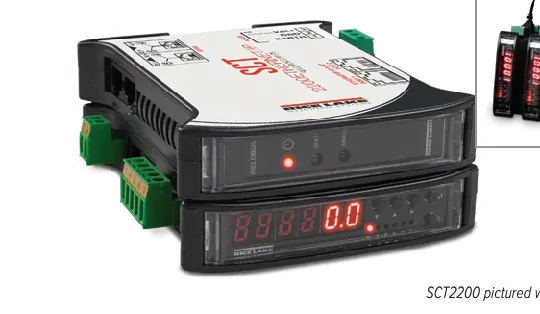

SCT-2200
Signal Conditioning Transmitter
Standard features
- HUB mode connects up to 16 transmitters to one fieldbus
- Two RS-485 port for "daisy-chain" network connection
- Quick menu for real and theoretical calibration
- Remote access through web browser for weight monitoring and calibration over EtherNet/IP™, PROFINET and Modbus TCP network
- Red LED display
- DIN rail mountable
- Calibration using linearization points
- Reading of the net, gross and tare weights, clearing, semi-automatic and preset tare setting of outputs application thresholds
- Diagnostic information via serial port, message display, printing, simulation of key pressure, Modbus RTU or ASCII protocol
- Printer management on second serial port available
- Multi-range function allows for subdividing the scale capacity in two, each up to 3,000 divisions
- Easy configuration with Rice Lake Tools software
Specifications
- Power
- 12/24 VDC
- Power Consumption
- 70 mA min to 100 mA max
- Excitation Voltage
- 5 VDC, 120 mA, 8 × 350 ohm load cells
- Analog Signal Input Range
- ± 39 mV
- Analog Signal Sensitivity
- 0.3 µV/graduation minimum
- A/D Sample Rate
- One channel A/D 24-bit sigma-delta conversion, up to 200 conv/sec. auto select
- Resolution
- Internal: 1,500,000 counts Display: 800,000
- Digital I/O
- Two inputs: 12/24 VDC Two outputs: 150 mA 48 VAC/150 mA 60 VDC
- Communication Ports
- (1) RS-485, (1) RS-232 Analog output (if equipped): Opt isolated, 16-bit 0-20 mA, 4-20 mA (Maximum 350 ohm) 0-5 VDC, 0-10 VDC (Minimum 10,000 ohm)
- Annunciators
- Net, center of zero, stability
- Display
- Six-digit 0.31 in (8 mm), red LED
- Keys/Buttons
- Five key, tactile feel Zero (Down), Tare (Up), Mode (Right), Print (Enter), C (On/Off)
- Dimensions
- (L × H × D) 4.72 × 4.52 × 0.98 in (120 × 115 × 25 mm)
- Temperature
- Certified: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 14 °F to 122 °F (-10 °C to 50 °C)
- Humidity
- 85% non-condensing
- Rating/Material
- NEMA Type 1 plastic pluggable connectors
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 202103 | * |
| 202104 | * 1 lb |
| 182592 | Fieldbus, SCT-2200, PROFINET module 1 lb |
| 194343 | Fieldbus, SCT-2200, Ethernet TCP/IP and Wi-Fi 1 lb |
| 182593 | Fieldbus, SCT-2200, PROFIBUS® module 1 lb |
| 182596 | Fieldbus, SCT-2200, DeviceNet® module 1 lb |
| 182598 | Fieldbus, SCT-2200, EtherCAT module 1 lb |
| 182597 | Fieldbus, SCT-2200, CANopen module 1 lb |
| 196694 | Fieldbus, SCT-2200, Modbus TCP module 1 lb |
| 182599 | Cable with RJ45 plugs, 6 in length 1 lb |
| 212772 | ** Fieldbus, SCT-2200, PROFIBUS module 1 lb |
Options & accessories (2)
| 88792 | 12 VDC 1.2 A DIN rail mount power supply 1 lb |
| 119244 | 24 VDC 1.3 A DIN rail mount power supply 1 lb |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 539. Specifications are subject to change without notice.
