Rice Lake · Indicators / Controllers

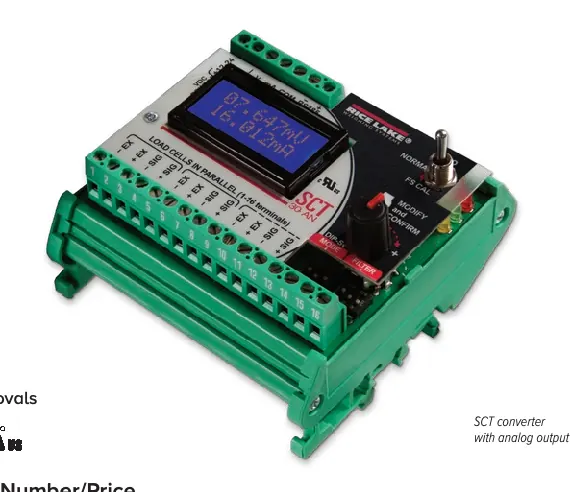

SCT-30
Signal Conditioning Transmitter
Standard features
- LCD display
- Powers up to eight (350 ohm) load cells in parallel (with a 24-bit A/D converter)
- A/D converter 24-bit 4.8 kHz
- 16-bit analog output: 0-20 mA, 4-20 mA, 0-5 V, 0-10 V, ± 5 V and ± 10 V
- Mounting on Omega/DIN rail for back panel or junction box
- Diagnostic message for load cell disconnect and over-capacity errors
Specifications
- Power
- Input: 12 to 24 VDC
- Power Consumption
- 3 W
- Excitation Voltage
- 5 VDC, 120 mA, 8 × 350 ohm load cells
- Analog Signal Input Range
- ± 39 mV
- Analog Signal Sensitivity
- 0.3 µV/graduation minimum 1.0 µV/graduation recommended
- A/D Sample Rate
- 300 Hz
- Resolution
- Internal: 16,000,000 counts
- System Linearity
- ± 0.01% full scale
- Communication Ports
- RS-485
- Analog Output
- Opto isolated, 16 bit 0-20 mA, 4-20 mA (max 300 ohm) 0-10 VDC, 0-5 VDC (min 10 k ohm)
- Display
- Eight-digit alphanumeric tow line LCD, 5 mm high
- Keys/Buttons
- Control knob and DIP switches
- Dimensions
- (L × W × H) 3.74 × 3.54 × 2.36 in (95 × 90 × 60 mm)
- Temperature
- Operating: -4 °F to 140 °F (-20 °C to 60 °C)
- Humidity
- 85% non-condensing
- Rating/Material
- DIN rail mount: NEMA Type 1
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 156794 | SCT-30 converter with Analog Output 1 lb |
Options & accessories (4)
| 88792 | 12 VDC 1.2 A DIN rail mount power supply 1 lb |
| 119244 | 24 VDC 1.3 A DIN rail mount power supply 1 lb |
| 131129 | Installation manual 1 lb |
| 199707 | DIN rail clip right & left end clamp |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 546. Specifications are subject to change without notice.
