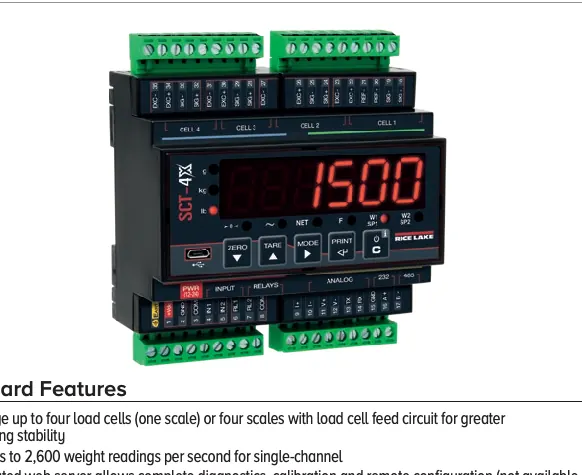

SCT-4X
Integrated Fieldbus Transmitter
Standard features
- Manage up to four load cells (one scale) or four scales with load cell feed circuit for greater weighing stability
- Process to 2,600 weight readings per second for single-channel
- Integrated web server allows complete diagnostics, calibration and remote configuration (not available on AN models)
- 14.2 mm display with new configuration menu to simplify calibration and configuration
- All data and adjustments of each scale are available through integrated fieldbus with up to 120 updates per second
- Frontal micro-USB communication port for configuration, diagnostics and data backup
- Removable terminal blocks to simplify wiring in the electrical panel
- RS-485 communication port always available on all versions
- Power supply circuit with protections, specific for industrial environment Optional xSpeed Software
- Customization of the weighing filter, to maximize the speed and accuracy in static and dynamic applications
- Graphical weighing analysis for the identification of mechanical disturbances and vibrations
- Oscilloscope function for system diagnostics and filter optimization
Specifications
- Power
- 12 to 24 VDC
- Power Consumption
- 5 W
- Excitation Voltage
- 5 VDC, 230 mA up to 16 × 350 ohm cells
- Analog Signal Input Range
- ± 39 mV
- Analog Signal Sensitivity
- 0.3 µV/graduation minimum
- A/D Sample Rate
- 24-bit A/D Single channel up to 2,600 conv/sec 4 channels up to 100 conv/sec
- Resolution
- Internal: 3,000,000 counts Display: up to 800,000 Up to 8 linearization points
- Digital I/O
- Two inputs: 12/24 VDC Two outputs: 150 mA 48 VAC/ 150 mA 60 VDC
- Communication Ports
- 1 Micro-USB port (device) for PC configuration (1) RS-485, (1) RS-232
- Analog Output (if equipped)
- OPTO isolated, 16-bit 0 to 20 mA, 4 to 20 mA (maximum 350 ohm) 0 to 5 VDC, 0 to 10 VDC (minimum 10,000 ohm)
- Annunciators
- Nine LEDs
- Display
- Six-digit 0.31 in (8 mm), red LED
- Keys/Buttons
- Five tactile keys Zeroing, Tare, function mode, manual data printing/ sending, on/stand-by
- Dimensions
- (L × W × H) 4.17 × 2.20 × 4.64 in (106 × 56 × 118 mm)
- Temperature
- Certified: 14 °F to 104 °F (-10 °C to 40 °C) Operating: -4 °F to 140 °F (-20 °C to 60 °C)
- Humidity
- 80% RH, non-condensing
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 216824 | rail mount with digital I/O, 2 IN, 2 OUT, keypad, LED display (does |
| 216825 | EtherNet/IP™ port for DIN rail mount with digital I/O 2 IN, 2 OUT, 5-key |
| 216826 | Modbus TCP port for DIN rail mount with digital I/O 2 IN, 2 OUT |
| 216827 | PROFINET port for DIN rail mount with digital I/O 2 IN, 2 OUT |
Options & accessories (1)
| 88792 | 12 VDC 1.2 A DIN rail mount power supply 1 lb |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 543. Specifications are subject to change without notice.
