Rice Lake · Indicators / Controllers

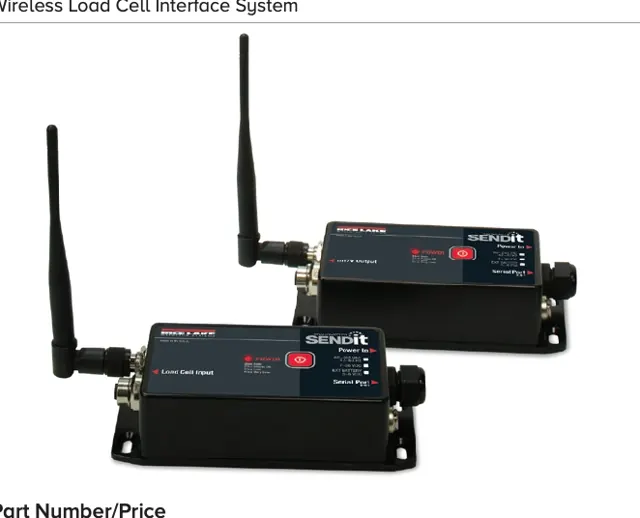

SendIt™
Wireless Load Cell Interface System
Standard features
- Works with any basic digital weight indicator
- Excitation to load cell(s) provided by the transmitter, not the indicator
- Each transmitter/receiver set is individually paired and will not interfere with another set
- RS-232 cable included with transmitter and paired set
Specifications
- Power
- 5 to 6 VDC
- Excitation Voltage
- Transmitter: +4.8 VDC, 16 × 350 ohm or 32 × 700 ohm load cells
- Frequency
- Direct sequence spread spectrum at 2.4 GHz, 802.15.4 license free
- Standard Antenna
- 1/2 wave 2dBi, articulated
- Effective Range
- Typically, 100 to 300 ft For longer range, consult factory
- Circuit Protection
- RFI, EMI, ESD protection Communication Ports Full duplex RS-232
- Temperature
- -40 °F to 185 °F (-40 °C to 85 °C)
- Rating/Material
- NEMA Type4 (IP66), aluminum black powder coated (excludes wall cube model)
- Warranty
- Two-year limited
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 160331 | 2 lb |
| 160338 | 2 lb |
| 165312 | Includes an RS-232 cable, a 2 m load cell cable and 2 m indicator 5 lb |
Options & accessories (12)
| 162172 | Charger, SendIt 6 V SLA battery |
| 162175 | Enclosure, SendIt for 6 V SLA battery |
| 145548 | Cord set, 13 ft (4 m) |
| 150964 | RS-232 13 ft (4 m) serial cable with nine-pin (female) connector |
| 150965 | RS-232 13 ft (4 m) serial cable with nine-pin (male) connector |
| 160109 | AC adapter, SendIt 6V |
| 162177 | |
| 162184 | |
| 162185 | |
| 162186 | |
| 162187 | |
| 162178 | Antenna kit, remote standard antenna, 5 ft |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 556. Specifications are subject to change without notice.
