Standard features

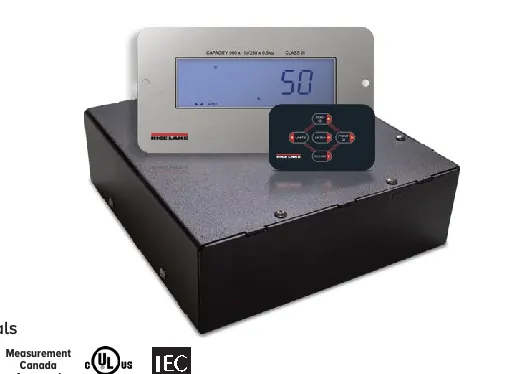

- Customer display (panel mount)
- CPU module
- Supports two displays (customer/agent)
- Five-button keypad for ticket agent
- Accumulation function
- Display indicates overweight bag
Specifications
- Power
- 115 to 230 VAC to CPU module 50/60 Hz
- Power Consumption
- 6 W
- Excitation Voltage
- 5 VDC, 8 x 350 ohm load cells
- Analog Signal Input Range
- -0.5 mV/V to 4.5 mV/V
- Analog Signal Sensitivity
- 1 µV/graduation recommended
- A/D Sample Rate
- 6.25 to 120 Hz, software selectable
- Resolution
- Internal: 8,000,000 counts Display: 1,000,000
- System Linearity
- Within 0.01% full scale
- Communication
- Ethernet TCP/IP USB Device
- Annunciators
- lb/kg
- Display
- Stainless steel, panel mounted, seven-digit LCD display, 0.8 in (20 mm) tall digits
- Keys/Buttons
- Zero, Units, Accum, Print, Enter
- Temperature Range
- 14 °F to 104 °F (-10 °C to 40 °C)
- Dimensions
- Panel Mount Display: 7.5 × 4.0 × 1.49 in (19.05 × 10.16 × 3.79 cm) External Mount Display: 7.5 × 3.9 × 1.44 in (19.05 × 9.91 × 3.66 cm) Panel Mount Keypad: 4.0 × 2.5 × 2.1 in (10.16 × 6.35 × 5.33 cm) CPU Enclosure: 7.5 × 7.0 × 2.25 in without mounting feet 11.13 × 7.0 × 3.06 in with mounting feet
- Weight
- 5.25 lb
- Warranty
- Two-year limited
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 202532 | Tracer AV2, single LCD panel mount display, single keypad |
| 204452 | Tracer AV2, single LCD external mount display, single keypad |
| 204451 | Tracer AV2, dual LCD external mount display, single keypad |
| 205206 | Tracer AV2 CPU module |
| 207288 | Kit, RD2 LCD display |
| 207289 | Kit, RD2 LCD display, external mount package |
| 207290 | Kit, five-button keypad |
| 15438 | Power cord, detachable, 7.5 ft long |
| 207302 | Cable splitter, DB9 female to DB9 male connector |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 40. Specifications are subject to change without notice.
