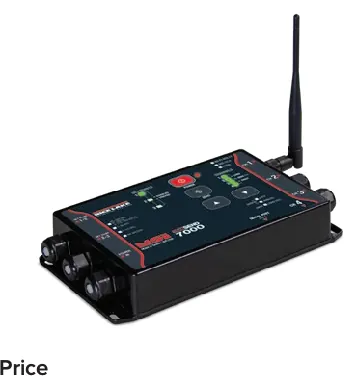

TranSend™
Wireless Load Cell Interface System
Standard features
- Works with any basic digital weight indicator
- Excitation to load cell(s) provided by the transmitter, not the indicator
- Each transmitter/receiver set is individually paired
- Serial communication cable included
Specifications
- Power
- 85 to 265 VAC
- Excitation Voltage
- Transmitter: +4.8 VDC, 16 × 350 ohm or 32 × 700 ohm load cells
- Standard Antenna
- 1/2 wave 2dBi, articulated
- Frequency
- Spread spectrum at 2.4 GHz, 802.15.4
- Effective Range
- Typically 100 to 300 ft, line of sight; for longer range consult factory
- Communication Ports
- Full duplex RS-232
- Circuit Protection
- RFI, EMI, ESD protection
- Temperature
- Operating: -40 °F to 185 °F (-40 °C to 85 °C)
- Rating/Material
- IP68, die-cast aluminum enclosure
- Additional RF Options
- Wi-Fi 802.15.4 FHSS
- Warranty
- One-year limited
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 227549 | Four-channel, transmitter, 85-265 VAC, load cell, w/3 relays 2 lb |
| 227550 | Four-channel, receiver, 85-265 VAC, digital, w/3 relays 2 lb |
| 230905 | Single-channel, transmitter, 85-265 VAC, load cell input 2 lb |
| 230951 | Single-channel, receiver, 85-265 VAC, mV output 2 lb |
| 230952 | Single-channel, receiver, 85-265 VAC, RS232 output 2 lb |
Options & accessories (11)
| 143531 | Power cord, 6 V SLA battery charger EU |
| 143533 | Power cord, 6 V SLA battery charger, Australia |
| 143534 | Power cord, 6 V SLA battery charger, UK |
| 150964 | RS-232 13 ft (4 m) serial cable with nine-pin (female) connector, MSI-7001 |
| 150965 | RS-232 13 ft (4 m) serial cable with nine-pin (male) connector, MSI-7001 |
| 145085 | RS-232 serial cable, unterminated, MSI-7000 |
| 148624 | Cable assembly, RS232/485 to DB9, used for setup and calibration |
| 144400 | Cable assembly, 4 pin, female, 4 meter, mV |
| 145084 | Cable assembly, 4 pin, female, 2 meter, mV |
| 187424 | Modem, dual option XBEE |
| 223594 | Option kit, Dual Analog output: 4/20mA, 0-5 VDC, 0-10VDC. +/- 5VDC, +/-10VDC |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 804. Specifications are subject to change without notice.
