Standard features

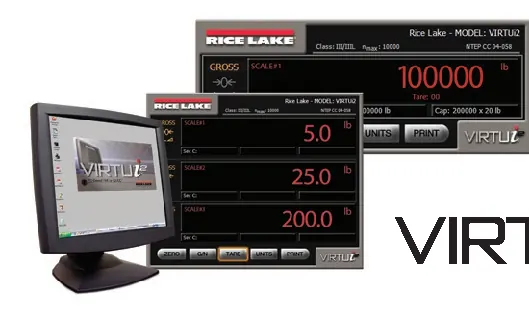

Virtual front panel consists of display and five- button keypad
Web browser-based iQUBE² cell status
Provides local and remote reporting of diagnostics and error conditions
Up to four scales and one total scale
Primary/secondary units configuration (lb, kg, short tons, metric tons, none)
RS-232 communications
Electronic Data Processing (EDP) port over RS-232 and TCP/IP
Printer port for output-only, simplex communications
Two print formats
Provides iQUBE² configuration screen and iQUBE² digital I/O configuration
Supports iQUBE² diagnostics with configurable error viewing
Peak weight history
Recalibration notification
Concentrated load capacity (CLC)

Specifications

Minimum System Requirements: Windows® 8.1 or newer Serial port USB to serial converter, or Ethernet TCP/IP for connection to iQUBE² Additional serial ports are required for connections to printers/remote displays
Annunciators: Units (lb, kg, short tons (tn), metric tons (t), NONE) gross/net, motion, center of zero
Approvals: NTEP 04-058 Class III/IIIL, 10,000 d

Models & part numbers

Available configurations.

Part / model	Description
108436	Activation part number - requires machine ID and customer’s email address

Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 928. Specifications are subject to change without notice.
