Zebra · Printers

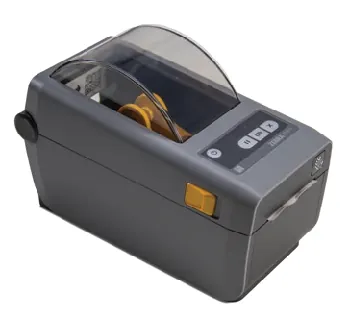

Zebra® ZD411
Direct Thermal/Thermal Transfer Label Printer
Standard features
- Open ACCESSTM design for easy media loading
- Fully enclosed 5.0 in (127 mm) media compartment
- Double-walled ABS case construction
- EPL and ZPL® programming language, co-resident
- 32-bit RISC processor
- 8 MB SDRAM, 4 MB flash memory
- Zebra E3 print head energy control
- Auto-calibration of media
- Five resident expandable EPL2® fonts
- Auto-switching 100 V and 240 V power supply
- Linear and 2-D bar code symbologies
- Transmissive and reflective media sensing
- Head-up sensor
- Tear-off mode
Specifications
- Resolution
- 203 dpi (8 dpmm)
- Print Length
- 0.005 to 39.0 in (0.125 to 991 mm)
- Print Speed
- 2 to 4 in per second (ips)
- Media
- Width: 1.00 to 2.36 in (25 to 60 mm)
- Interface
- USB, Ethernet, and Bluetooth (Serial Optional)
- Label Length
- Minimum: 0.38 in (9.7 mm) 1.0 in with optional cutter Maximum 39 in (991 mm) Inner Core: 1.0 in Max roll diameter: 5 in Sensing: gap, black line, notch Type: roll-fed, fan fold, die cut or continuous with or without black mark, tag stock
- Bar Codes
- Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, PLessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (formerly RSS), PDF417, MicroPDF417, Code 49, Maxicode, Codablock, Data Matrix, QR code, Aztec
- Power
- 100 to 240 VAC, 50/60 Hz, US power cord
- Temperature
- Operating: -40 °F to 105 °F (-40 °C to 40.5 °C)
- Dimensions
- 8.5 × 4.5 × 6.0 in (220 × 115 × 151 mm)
- Warranty
- One-year limited
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 216767 | 3 lb |
| 219364 | ZD411, thermal transfer, USB, Ethernet, BT, US 120 VAC 3 lb |
Options & accessories (11)
| 212815 | RS-232 option card, compatible with ZD411 and ZD421 (field installable) |
| 110346 | Direct thermal, (W × L × D) 1.2 × .85 × 5 in with perf., 2,700/LPR/roll |
| 110347 | Direct thermal, (W × L × D) 2.25 × 1.25 × 5 in with perf., 2,100/LPR/roll |
| 40332 | Direct thermal, (W × L × D) 2.25 × 2 × 5 in with perf., 1,445/LPR/roll |
| 110348 | Direct thermal, (W × L × D) 2.25 × 3 × 5 in with perf., 950/LPR/roll |
| 110349 | Direct thermal, (W × L × D) 2.25 × 4 × 5 in with perf., 700/LPR/roll |
| 65617 | Direct thermal, (W × L × D) 2.25 × 4.5 × 5 in with perf., 600/LPR/roll |
| 126092 | Thermal paper, (W × D) 2 × 5 in, 6 rolls/case/case |
| 207358 | Ribbon, wax/general purpose, 2.5 in × 243 ft, 0.5 in core |
| 79074 | USB-A (male) to USB-B (male) cable, 6 ft |
| 64794 | DB9 RS-232 cable DB9F to DB9M |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 881. Specifications are subject to change without notice.
