Zebra · Printers

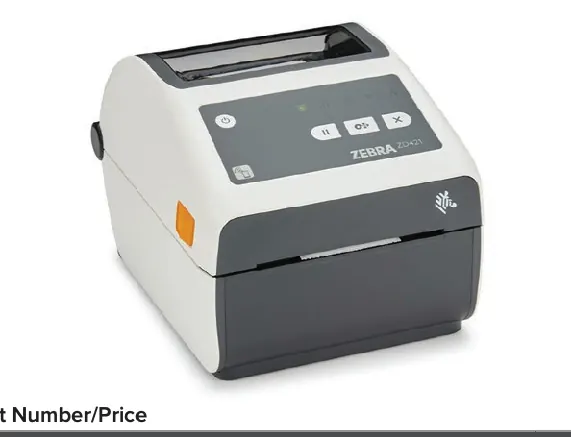

Zebra® ZD421
Direct Thermal/Thermal Transfer Label Printer
Standard features
- Auto sense EPLZ or ZPL
- Tear bar
Specifications
- Print Speed
- 6 ips
- Print Width
- 4.09 in (104 mm)
- Paper Width
- 0.75 to 4.25 in (19 × 108 mm)
- Paper Thickness
- 0.003 to 0.0075 in (0.08 × 0.19 mm)
- Paper Diameter
- 5 in (127 mm)
- Paper Roll Shaft
- 0.5 and 1.0 in (13 × 25 mm) standard
- Resolution
- 203 dpi/8 dots per mm
- Memory
- 512 MB flash, 128 MB SDRAM
- Ribbon Outside Diameter
- 2.6 in
- Ribbon Standard Length
- 984 ft (300 m)
- Ribbon Ratio
- 1:4 media to ribbon
- Ribbon Width
- 0.585 to 4.65 in
- Ribbon Core Inner Diameter
- 1 in
- Interface
- USB 2.0 host Ethernet TCP/IP Optional: RS-232 serial (DB-9F)
- Temperature
- Operating: 40 °F to 105 °F (4 °C to 41 °C) Storage: -40 °F to 140 °F (-40 ° C to 60 °C)
- Dimensions
- (L × W × H) ZD421: 8.69 × 6.98 × 5.93 in ZD421T: 10.5 × 8.0 × 7.5 in
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 212409 | ZD421d direct thermal printer, USB host 10 lb |
| 212410 | ZD421d direct thermal printer, USB host, Ethernet LAN 10 lb |
| 212406 | ZD421t thermal transfer printer, USB host 10 lb |
| 212411 | ZD421t thermal transfer printer, USB host, Ethernet LAN 10 lb |
Options & accessories (12)
| 213356 | Peeler option, ZD421d, front mount, field installable |
| 212815 | RS-232 option, ZD421 field installable |
| 41276 | Interface cable DB9 to blunt |
| 192736 | Ribbon core option (ZD421t) to accept 1 in ribbon cores (set of 2) |
| 192725 | 2000 wax ribbon (ZD421t) 3.31 in × 984 ft, 1 in core |
| 192726 | 2000 wax ribbon (ZD421t) 4.23 in × 984 ft, 1 in core |
| 192727 | 5555 wax/resin ribbon (ZD421t) 2.52 in × 984 ft, 1 in core |
| 192728 | 5555 wax/resin ribbon (ZD421t) 3.31 in × 984 ft, 1 in core |
| 192729 | 5555 wax/resin ribbon (ZD421t) 4.33 in × 984 ft, 1 in core |
| 192730 | 5095 resin ribbon (ZD421t) 2.52 in × 984 ft, 1 in core |
| 192731 | 5095 resin ribbon (ZD421t) 3.31 in × 984 ft, 1 in core |
| 192732 | 5095 resin ribbon (ZD421t) 4.33 in × 984 ft, 1 in core |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 882. Specifications are subject to change without notice.
