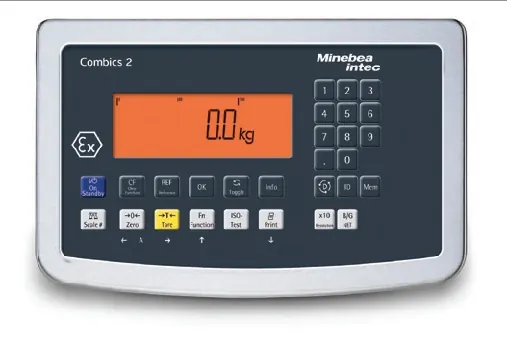

Combics® 2 Ex
Explosion-proof Digital Weight Indicator
Standard features
- Amber backlit LCD dot matrix display
- Three-way unit toggle; 10x higher resolution toggle
- Two header line storage
- Battery charge status display (with connection of battery pack)
- Numeric keypad with two IDs for entering identifier codes and preset tare
- Date/time fully integrated
- GMP printable record
- Three built-in LED checkweighing lights
- Bar graph weighing range indicator
- Application data and totalization memory stored in battery-backed RAM
Specifications
- Power Requirements
- 110 to 220 VAC and 24 VDC
- Excitation Voltage
- 6 V
- Load Cell Connection
- Four- or six-wire
- Annunciators
- Gross/Net toggle
- Keys/Buttons
- On/Off, Zero, Tare, Print/Data
- Dimensions
- (L × W × H) 11.9 × 7.4 × 3.5 in (302 × 188 × 90 mm)
- Temperature
- Operating: 14 °F to 104 °F (-10 °C to 40 °C)
- Rating/Material
- NEMA Type 4X, IP69K 304 stainless steel
- Warranty
- Two-year limited, pending evaluation
- Approvals
- NTEP 19-055 FM Class 1,2,3, Division 1, Groups ABCDEFG and temperature class T4
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 158644 | CAIXS2-U Indicator, CAIXS2-U IP69K protection rated 7 lb |
| 197168 | CAIXS2-UA19M26 Indicator, CAIXS2 EX IS-X 7 lb |
Options & accessories (11)
| 46518 | YPS02-XUR Power supply, hazardous area, United States |
| 103068 | YRB02-X Battery pack, 30+ hours (requires 103069) |
| 103069 | YRB02-LD Charger for battery pack |
| 103054 | YCC02-XR14F02 Quick disconnect cable, for Zener barrier |
| 155882 | YDI05-ZU1 Zener barrier |
| 155918 | A19 485 interface (IS-X Base) |
| 155919 | M26 Cable to IS-X |
| 105607 | YDH02CISUS Wall mount bracket |
| 156440 | YDH01CWSUS Post mount assembly for 10 × 10 in platforms, 13 in high |
| 156441 | YDH02CWSUS Post mount assembly for 12 × 12 in platforms, 19 in high |
| 156442 | YDH03CWSUS Post mount assembly for 18 × 18 in platforms, 29 in high |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 850. Specifications are subject to change without notice.
