Rice Lake · Precision Industrial Weighing
IF Series

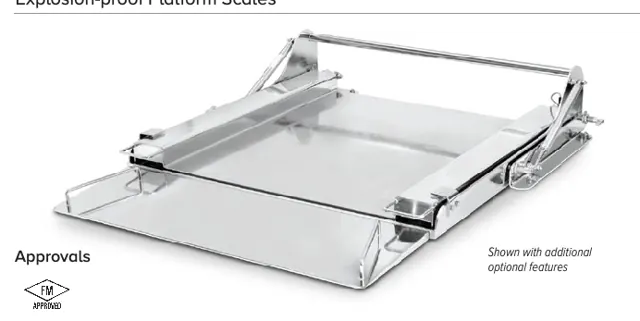

Explosion-proof Platform Scales
Standard features
- Capacities from 150 to 3,000 kg (330 to 6,613 lb) with resolutions up to 30,000 d
- Drive-on ramp included with every platform
- No pit required
- Convenient for application-oriented weighing systems from processing to the chemical industry
Specifications
- Rating/Material
- AISI 304 bead-blasted stainless steel Load cells IP68, hermetically sealed
- Cable Length
- 19.7 ft (6 m )
- Regulatory Compliance
- NEMA, HACCP, FDA, GLP/GMP*, Class 10,000 clean rooms (US Federal Standard 209D) (equivalent to Class C in accordance with EEC-GWP), FM *GLP/GMP requires use of Combics 1 Plus or higher digital weight indicator
- Warranty
- Two-year limited, pending evaluation
- Approvals
- FM approved, IFXS4 series, are certified for use in Class 1,2,3, Div. 1, Groups ABCDEFT4 (Verification of Intrinsic Safety included also covers any explosion protected Minebea components combined with this platform series)
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 102530 | IFXS4-150GG 23.6 × 23.6 in 4 330 lb 0.01 lb 150 |
| 102531 | IFXS4-300GG 23.6 × 23.6 in 4 660 lb 0.02 lb 300 |
| 102532 | IFXS4-600GG 23.6 × 23.6 in 4 1,320 lb 0.05 lb 600 |
| 102533 | IFXS4-1000GG 23.6 × 23.6 in 4 2,200 lb 0.1 lb 1,000 |
| 102534 | IFXS4-150IG 31.5 × 23.6 in 4 330 lb 0.01 lb 150 |
| 102536 | IFXS4-300IG 31.5 × 23.6 in 4 660 lb 0.02 lb 300 |
| 102537 | IFXS4-600IG 31.5 × 23.6 in 4 1,320 lb 0.05 lb 600 |
| 102538 | IFXS4-1000IG 31.5 × 23.6 in 4 2,200 lb 0.1 lb 1,000 |
| 102541 | IFXS4-300II 31.5 × 31.5 in 4 660 lb 0.02 lb 300 |
| 102542 | IFXS4-600II 31.5 × 31.5 in 4 1,320 lb 0.05 lb 600 |
| 102543 | IFXS4-1000II 31.5 × 31.5 in 4 2,200 lb 0.1 lb 1,000 |
| 102544 | IFXS4-1500II 31.5 × 31.5 in 4 3,300 lb 0.1 lb 1,500 |
| 102545 | IFXS4-150LG 39.4 × 23.6 in 4 330 lb 0.01 lb 150 |
| 102546 | IFXS4-300LG 39.4 × 23.6 in 4 660 lb 0.02 lb 300 |
| 102547 | IFXS4-600LG 39.4 × 23.6 in 4 1320 lb 0.05 lb 600 |
| 102548 | IFXS4-1000LG 39.4 × 23.6 in 4 2,200 lb 0.1 lb 1,000 |
| 102549 | IFXS4-1500LG 39.4 × 23.6 in 4 3,300 lb 0.1 lb 1,500 |
| 102550 | IFXS4-150LI 39.4 × 31.5 in 4 330 lb 0.01 lb 150 |
| 102551 | IFXS4-300LI 39.4 × 31.5 in 4 660 lb 0.02 lb 300 |
| 102552 | IFXS4-600LI 39.4 × 31.5 in 4 1,320 lb 0.05 lb 600 |
| 102553 | IFXS4-1000LI 39.4 × 31.5 in 4 2,200 lb 0.1 lb 1,000 |
| 102554 | IFXS4-1500LI 39.4 × 31.5 in 4 3,330 lb 0.1 lb 1,500 kg |
| 102555 | IFXS4-150LL 39.4 × 39.4 in 4 330 lb 0.01 lb 150 kg |
| 102556 | IFXS4-300LL 39.4 × 39.4 in 4 660 lb 0.02 lb 300 kg |
| 102557 | IFXS4-600LL 39.4 × 39.4 in 4 1,320 lb 0.05 lb 600 kg |
| 102558 | × |
| 102559 | IFXS4-1500LL 39.4 × 39.4 in 4 3,330 lb 0.1 lb 1,500 kg |
| 102560 | IFXS4-3000LL 39.4 × 39.4 in 4 6,660 lb 0.2 lb 3,000 kg |
| 102561 | IFXS4-150NL 49.2 × 39.4 in 4 330 lb 0.01 lb 150 kg |
| 102562 | IFXS4-300NL 49.2 × 39.4 in 4 660 lb 0.02 lb 300 kg |
| 102563 | IFXS4-600NL 49.2 × 39.4 in 4 1,320 lb 0.05 lb 600 kg |
| 102564 | IFXS4-1000NL 49.2 × 39.4 in 4 2,200 lb 0.1 lb 1,000 kg |
| 102565 | IFXS4-1500NL 49.2 × 39.4 in 4 3,330 lb 0.1 lb 1,500 kg |
| 102566 | IFXS4-3000NL 49.2 × 39.4 in 4 6,660 lb 0.2 lb 3,000 kg |
| 102567 | IFXS4-150NN 49.2 × 49.2 in 4 330 lb 0.01 lb 150 kg |
| 102568 | IFXS4-300NN 49.2 × 49.2 in 4 660 lb 0.02 lb 300 kg |
| 102569 | IFXS4-600NN 49.2 × 49.2 in 4 1,320 lb 0.05 lb 600 kg |
| 102570 | IFXS4-1000NN 49.2 × 49.2 in 4 2,200 lb 0.1 lb 1,000 kg |
| 102571 | IFXS4-1500NN 49.2 × 49.2 in 4 3,330 lb 0.1 lb 1,500 kg |
| 102572 | IFXS4-3000NN 49.2 × 49.2 in 4 6,660 lb 0.2 lb 3,000 kg |
| 102573 | IFXS4-150RN 59.1 × 49.2 in 4 330 lb 0.01 lb 150 kg |
| 102574 | IFXS4-300RN 59.1 × 49.2 in 4 660 lb 0.02 lb 300 kg |
| 102575 | IFXS4-600RN 59.1 × 49.2 in 4 1,320 lb 0.05 lb 600 kg |
| 102576 | IFXS4-1000RN 59.1 × 49.2 in 4 2,200 lb 0.1 lb 1,000 kg |
| 102577 | IFXS4-1500RN 59.1 × 49.2 in 4 3,330 lb 0.1 lb 1,500 kg |
| 102578 | IFXS4-3000RN 59.1 × 49.2 in 4 6,660 lb 0.2 lb 3,000 kg |
| 102579 | IFXS4-150RR 59.1 × 59.1 in 4 330 lb 0.01 lb 150 kg |
| 102580 | IFXS4-300RR 59.1 × 59.1 in 4 660 lb 0.02 lb 300 kg |
| 102581 | IFXS4-600RR 59.1 × 59.1 in 4 1,320 lb 0.05 lb 600 kg |
| 102582 | × |
| 102583 | IFXS4-1500RR 59.1 × 59.1 in 4 3,330 lb 0.1 lb 1,500 kg |
| 102584 | IFXS4-3000RR 59.1 × 59.1 in 4 6,660 lb 0.2 lb 3,000 kg |
| 102585 | IFXS4-150WR 78.7 × 59.1 in 4 330 lb 0.01 lb 150 kg |
| 102586 | IFXS4-300WR 78.7 × 59.1 in 4 660 lb 0.02 lb 300 kg |
| 102587 | IFXS4-600WR 78.7 × 59.1 in 4 1,320 lb 0.05 lb 600 kg |
| 102588 | × |
| 102589 | IFXS4-1500WR 78.7 × 59.1 in 4 3,330 lb 0.1 lb 1,500 kg |
| 102590 | IFXS4-3000WR 78.7 × 59.1 in 4 6,660 lb 0.2 lb 3,000 kg |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 852. Specifications are subject to change without notice.
