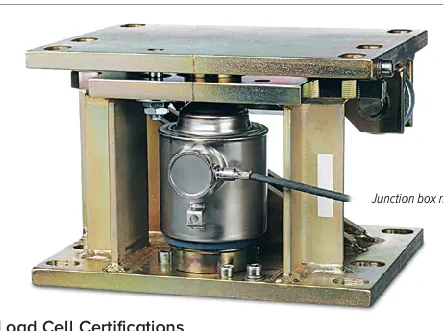

Standard features

Fast and easy installation
Mounting kit with dummy function included
Inteco load cell for capacities ranging from 500 kg to 300 t
Designed to withstand high lateral forces
Maintenance-free constrainer and module construction
Patent pending DE 101 38 435A1
Approval Certificate “Germanischer Lloyd” No. 47-458-03HH
Load cell output 1 mV/V
15-year load cell warranty
10,000 division load cell
39 kN stainless steel mount destructive lateral force; 20 kN permissible lift-off protection
Foot 20 kN lateral force and lift-off protection

Models & part numbers

Available configurations.

Part / model	Description
158727	Inteco-1532-U 3,300 lb 1,500 kg 1,100 lb 500 kg
158731	Inteco-6032-U 13,200 lb 6,000 kg 4,400 lb 2,000 kg
158733	Inteco-9032-U 19,800 lb 9,000 kg 6,600 lb 3,000 kg
158735	Inteco-15032-U 33,000 lb 15,000 kg 11,025 lb 5,000 kg
158737	Inteco-30032-U 66,000 lb 30,000 kg 22,050 lb 10,000 kg
158739	Inteco-60032-U 132,000 lb 60,000 kg 44,100 lb 20,000 kg
158741	Inteco-90032-U 198,000 lb 90,000 kg 66,140 lb 30,000 kg
158743	Inteco-150032-U 330,500 lb 150,000 kg 110,200 lb 50,000 kg
158730	Inteco-4042-U 8,800 lb 4,000 kg 2,200 lb 1,000 kg
158732	Inteco-8042-U 17,600 lb 8,000 kg 4,400 lb 2,000 kg
158734	Inteco-12042-U 26,400 lb 12,000 kg 6,600 lb 3,000 kg
158736	Inteco-20042-U 44,000 lb 20,000 kg 11,025 lb 5,000 kg
158738	Inteco-40042-U 88,000 lb 40,000 kg 22,050 lb 10,000 kg
158740	Inteco-80042-U 176,000 lb 80,000 kg 44,100 lb 20,000 kg
158742	Inteco-120042-U 264,500 lb 120,000 kg 66,140 lb 30,000 kg
158744	Inteco-200042-U 440,500 lb 200,000 kg 110,200 lb 50,000 kg

Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 855. Specifications are subject to change without notice.
