Rice Lake · Precision Industrial Weighing

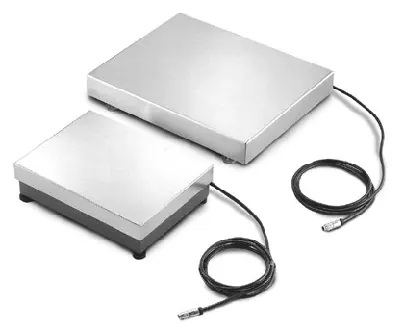

IS Series
Industrial Scale Weighing Platform (not intrinsically safe)
Standard features
- RS-485 interface is X-bus compatible
- IS platform calibrates and adjusts itself automatically using a built-in calibration weight with ISO TEST key
- High internal resolution guarantees reliable weight readouts
- Weighing results: up to 50 times/second
- All scales come standard with stainless steel load plate (wraparound design optional)
- Internal calibration (ISEDE and ISIGG models only)
- Optional RS-232C interface available
Specifications
- Power Requirements
- 10.6 VDC to 30 VDC supplied by external power Supply, battery pack or Combics IS indicator
- Indicator Connectivity
- Combics UV1
- Models Sensing
- Force motor cell
- Stability
- Weight stabilizes 1.5 second
- Weighing Design
- Electro magnetic
- Indicators Options
- Combics UVI models
- Construction
- Stainless steel platforms Die-cast or galvanized base construction (model dependent)
- IP Rating
- BBP/DCS: IP54 EDE: IP65 IGG: IP67
- Cable Length
- 6 m (20 ft)
- Warranty
- Two-year limited, pending evaluation
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 174127 | ISBBP-06-H 0 4.5 in 1 1.6 lb 0.00002 lb 0.62 kg |
| 174128 | ISBBP-3-H 7.1 × 7.1 in 1 6.8 lb 0.00002 lb 3.1 kg |
| 174129 | ISBBP-6-H 7.1 × 7.1 in 1 13.7 lb 0.00002 lb 6.2 kg |
| 102003 | ISDCS-16-H 15.8 × 11.8 in 1 35 lb 0.0002 lb 16 kg |
| 102004 | ISDCS-35-H 15.8 × 11.8 in 1 75 lb 0.0002 lb 34 kg |
| 102005 | ISEDE-64-SV1 15.8 × 11.8 in 1 141 lb 0.002 lb 64 kg |
| 102006 | ISEDE-64-HV1 15.8 × 11.8 in 1 141 lb 0.0002 lb 64 kg |
| 102008 | ISIGG-150-HV1 32 × 24 in 1 330 lb 0.002 lb 150 kg |
| 102009 | ISIGG-300-HV1 32 × 24 in 1 660 lb 0.005 lb 300 kg |
| 102013 | ISIGG-300-DS1 32 × 24 in 1 660 lb 0.0005 lb 300 kg |
| 115668 | CAISL1-UV1 Combics 1 indicator for IS base, IP44 |
| 115670 | CAISL2-UV1 Combics 2 indicator for IS base, IP44 |
| 115671 | CAIS1-UV1 Combics 1 indicator for IS base, IP69K |
| 115673 | CAIS2-UV1 Combics 2 indicator for IS base, IP69K |
| 115674 | CAIS3-UV1 Combics 3 indicator for IS base,IP69K |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 848. Specifications are subject to change without notice.
